STW35N60DM2 - ST Microelectronics

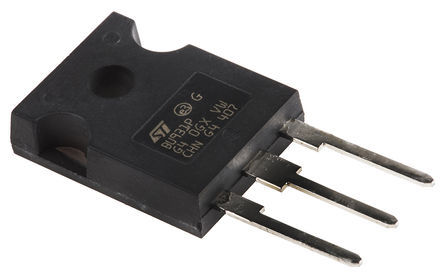

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STW35N60DM2
Manufacturer

ST Microelectronics
ChipWorker Part#

CW10675439
Category

High Voltage MOS Transistor
Package

TO-247-3
Description

STMICROELECTRONICS STW35N60DM2 Power MOSFET, Mdmesh DM2, N Channel, 28A, 600V, 0.094Ω, 10V, 4V
Documentation

Datasheet

STW35N60DM2 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STW35N60DM2 Specifications

Attribute	Attribute Value

Part Number	STW35N60DM2
Manufacturer	ST Microelectronics
ChipWorker Part#	CW10675439
Category	High Voltage MOS Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.094 Ω
Polarity	N-Channel
Power Dissipation	210 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	600 V
Rise Time	17 ns
Input Capacitance (Ciss)	2400pF @100V(Vds)
Fall Time	10.7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	210W (Tc)
	expand all
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

N-Channel 600V 28A (Tc) 210W (Tc) Through Hole TO-247
