SZMM3Z4V3T1G - ON Semiconductor

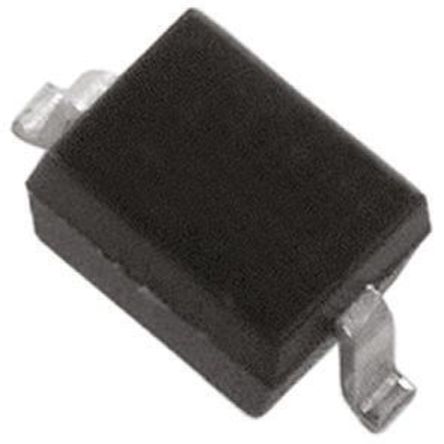

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SZMM3Z4V3T1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW108630553
Category

Zener Diode, Zener
Package

SOD-323-2
Description

SOD-323 4.3V 200mW
Documentation

Datasheet

SZMM3Z4V3T1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SZMM3Z4V3T1G Specifications

Attribute	Attribute Value

Part Number	SZMM3Z4V3T1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW108630553
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323-2
Capacitance Tolerance	±7 %
Forward Voltage	0.9 V
Power Dissipation	300 mW
Test Current	5 mA
Zener Voltage	4.3 V
Input Power (Max)	200 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	300 mW
	expand all
Size-Length	1.8 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-65℃ ~ 150℃
Temperature Coefficient	3.5mV/K ~ 0mV/K
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Zener Diode 4.3V 200mW ±7% Surface Mount SOD-323
