SZP6SMB36CAT3G - Littelfuse

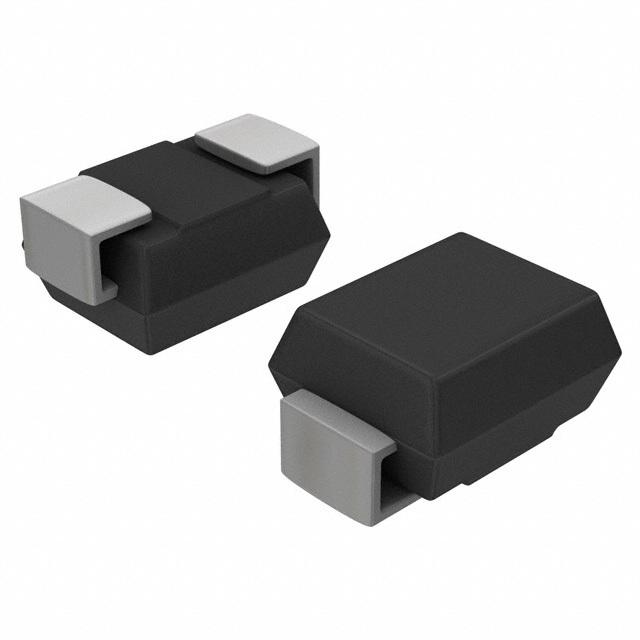

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SZP6SMB36CAT3G
Manufacturer

Littelfuse
ChipWorker Part#

CW6812890
Category

Diode
Package

SMB
Description

Diode TVS Single Bi-Dir 30.8V 600W Automotive 2Pin SMB T/R
Documentation

Datasheet

SZP6SMB36CAT3G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SZP6SMB36CAT3G Specifications

Attribute	Attribute Value

Part Number	SZP6SMB36CAT3G
Manufacturer	Littelfuse
ChipWorker Part#	CW6812890
Category	Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMB
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	49.9 V
Test Current	1 mA
Max Breakdown Voltage	37.8 V
Peak Pulse Power	600 W
Min Breakdown Voltage	34.2 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status

Product Description

49.9V Clamp 12A Ipp Tvs Diode Surface Mount SMB
