T821114A1S100CEU - Amphenol

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

T821114A1S100CEU
Manufacturer

Amphenol
ChipWorker Part#

CW8818042
Category

Wire to Board Connector
Description

AMPHENOL T821114A1S100CEU Wire-To-Board Connector, Vertical, 2.54mm, 14Contacts, Header, T821 Series, Through Hole, 2Rows
Documentation

Datasheet

T821114A1S100CEU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

T821114A1S100CEU Specifications

Attribute	Attribute Value

Part Number	T821114A1S100CEU
Manufacturer	Amphenol
ChipWorker Part#	CW8818042
Category	Wire to Board Connector
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Number of Contacts	14 Contact
Gender	Male
Contact Plating	Gold
Current Rating	3 A
Number of Rows	2 Row
Orientation	Straight
	expand all
Contact Material	Phosphor Bronze
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17

Product Description

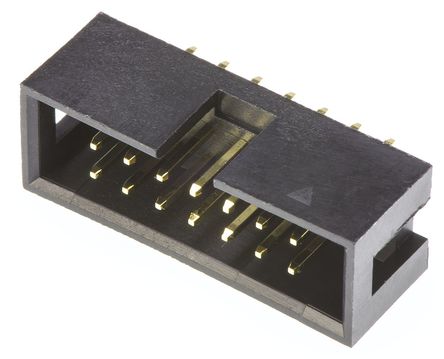

The T821114A1S100CEU is a 14-way straight Box Header without latch. This box header has phosphor bronze contact and glass-reinforced thermoplastic insulator.
2.54mm pitch
Black Colour
STD (Non-latch) Type
STD, PBT, 3.3mm Pin Tail
UL94V-0 Flame-rated Glass-reinforce Thermoplastic/PBT Insulator
1000MR Insulation Resistance
250VAC/RMS at 60Hz Voltage

expand all
