TBD62003APG - Toshiba

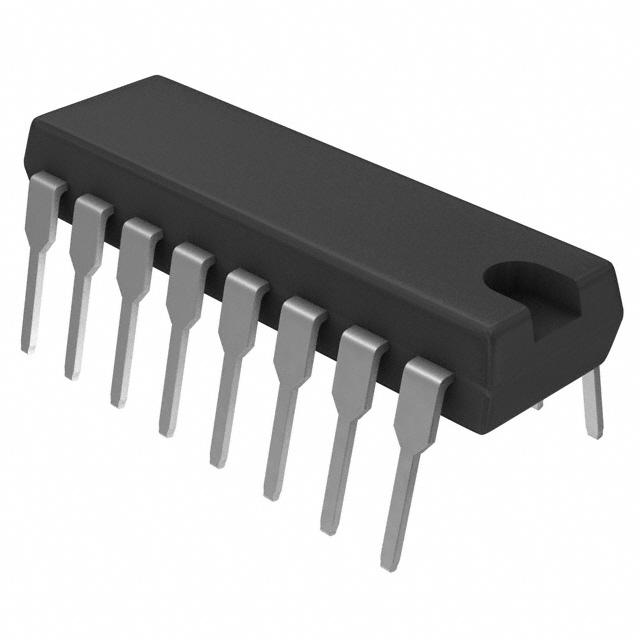

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TBD62003APG
Manufacturer

Toshiba
ChipWorker Part#

CW45099886
Package

DIP-16
Description

IC LOAD SWITCH 7CH 0.5A 16DIP
Documentation

Datasheet

TBD62003APG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TBD62003APG Specifications

Attribute	Attribute Value

Part Number	TBD62003APG
Manufacturer	Toshiba
ChipWorker Part#	CW45099886
Documentation	Datasheet
Number of Pins	16 Pin
Case/Package	DIP-16
Number of Outputs	7 Output
Output Voltage	50 V
Output Current	500 mA
Power Dissipation	1.47 W
Output Current (Max)	2.8 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	19.75 mm
Size-Width	6.4 mm
Size-Height	3.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	New Product
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Power Switch/Driver 1:1 N-Channel 500mA 16-DIP
