TC4427ACPA - Microchip

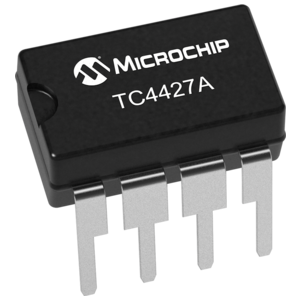

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TC4427ACPA
Manufacturer

Microchip
ChipWorker Part#

CW8920575
Category

FET Driver
Package

PDIP-8
Description

TC4427ACPA, Dual MOSFET Power Driver 1.5A, 4.5 to 18V, Non-Inverting, 8Pin PDIP
Documentation

Datasheet

TC4427ACPA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TC4427ACPA Specifications

Attribute	Attribute Value

Part Number	TC4427ACPA
Manufacturer	Microchip
ChipWorker Part#	CW8920575
Category	FET Driver
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	4.50V (min)
Operating Voltage	4.5V ~ 18V
Rise/Fall Time	25 ns
Number of Outputs	2 Output
Supply Current	4.50 mA
Number of Positions	8 Position
Power Dissipation	730 mW
Rise Time	40ns (Max)
Fall Time	40ns (Max)
Fall Time (Max)	35 ns
Fall Time (Max)	35 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	730 mW
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	0.4 in
Size-Width	6.6 mm
Size-Height	4.06 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

GENERAL DESCRIPTION
The TC4426A/4427A/4428A are improved versions of the earlier TC426/427/428 family of buffer/drivers (with which they are pin compatible). They will not latch up under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking (of either polarity) occurs on the ground pin. They can accept, without damage or logic upset, up to 500 mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against up to 4 kV of electrostatic discharge.
FEATURES
■ High Peak Output Current ............................... 1.5A
■ Wide Operating Range .......................... 4.5V to 18V
■ High Capacitive Load
Drive Capability ................. 1000 pF in 25 nsec Typ
■ Short Delay Time ................................. 30 nsec Typ
■ Matched Rise, Fall and Delay Times
■ Low Supply Current
— With Logic “1” Input ............................ 1 mA Typ
— With Logic “0” Input ......................... 100 µA Typ
■ Low Output Impedance ................................ 7ΩTyp
■ Latch-Up Protected: Will Withstand 0.5A
Reverse Current
■ Input Will Withstand Negative Inputs Up to 5V
■ ESD Protected ....................................................4 kV
■ Pinout Same as TC426/TC427/TC428
