TC4427AEOA713 - Microchip

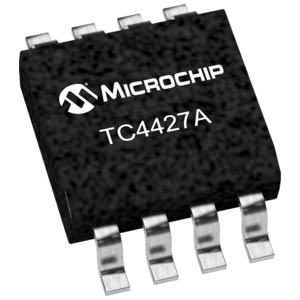

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TC4427AEOA713
Manufacturer

Microchip
ChipWorker Part#

CW2647868
Category

FET Driver
Package

SOIC-8
Description

1.5A Dual MOSFET Drvr, td Match8 SOIC 3.9mm(0.15in) T/R
Documentation

Datasheet

TC4427AEOA713 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TC4427AEOA713 Specifications

Attribute	Attribute Value

Part Number	TC4427AEOA713
Manufacturer	Microchip
ChipWorker Part#	CW2647868
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	4.50V (min)
Rise/Fall Time	25 ns
Number of Outputs	2 Output
Supply Current	4.50 mA
Number of Positions	8 Position
Power Dissipation	470 mW
Fall Time (Max)	35 ns
Fall Time (Max)	35 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	470 mW
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

General Description:
The TC4426A/TC4427A/TC4428A are improved versions of the earlier TC4426/TC4427/TC4428 family of MOSFET drivers. In addition to matched rise and fall times, the TC4426A/TC4427A/TC4428A devices have matched leading and falling edge propagation delay
times.
Features:
• High Peak Output Current – 1.5A
• Wide Input Supply Voltage Operating Range:
\- 4.5V to 18V
• High Capacitive Load Drive Capability – 1000 pF in 25 ns (typ.)
• Short Delay Times – 30 ns (typ.)
• Matched Rise, Fall and Delay Times
• Low Supply Current:
\- With Logic ‘1’ Input – 1 mA (typ.)
\- With Logic ‘0’ Input – 100 μA (typ.)
• Low Output Impedance – 7Ω (typ.)
• Latch-Up Protected: Will Withstand 0.5A Reverse Current
• Input Will Withstand Negative Inputs Up to 5V
• ESD Protected – 4 kV
• Pin-compatible with TC426/TC427/TC428 and TC4426/TC4427/TC4428
• Space-saving 8-Pin MSOP and 8-Pin 6x5 DFN Packages

expand all
