THS4131IDGN - TI

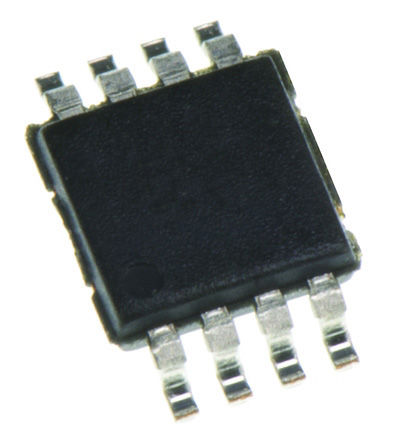

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

THS4131IDGN
Manufacturer

TI
ChipWorker Part#

CW21839207
Category

Operational Amplifier, OP Amp IC
Package

PowerPad-MSOP-8
Description

TEXAS INSTRUMENTS THS4131IDGN Differential Amplifier, Low Noise, 1 Amplifiers, 0.2mV, 2dB, 150MHz, -40℃, 85℃
Documentation

Datasheet

THS4131IDGN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

THS4131IDGN Specifications

Attribute	Attribute Value

Part Number	THS4131IDGN
Manufacturer	TI
ChipWorker Part#	CW21839207
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerPad-MSOP-8
Output Current	45mA @5V
Supply Current	12.3 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	1710 mW
Common Mode Rejection Ratio	80 dB
Input Offset Drift	4.50 µV/K
Bandwidth	150 MHz
Slew Rate	52.0 V/μs
Gain Bandwidth Product	225 MHz
Input Offset Voltage	200 µV
Input Bias Current	2 µA
Available Channels	S
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	150 MHz
Gain Bandwidth	225 MHz
Power Dissipation (Max)	1710 mW
Minimum CMRR Range	80 dB
Supply Voltage	5V ~ 30V
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	4 V
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

DESCRIPTION
The THS413x is one in a family of fully-differential input/differential output devices fabricated using Texas Instruments" state-of-the-art BiComI complementary bipolar process. The THS413x is made of a true fully-differential signal path from input to output. This design leads to an excellent common-mode noise rejection and improved total harmonic distortion.
FEATURES
• High Performance
– 150 MHz, –3 dB Bandwidth (VCC= ±15 V)
– 51 V/µs Slew Rate
– –100 dB Third Harmonic Distortion at 250 kHz
• Low Noise
– 1.3 nV/√Hz Input-Referred Noise
• Differential-Input/Differential-Output
– Balanced Outputs Reject Common-Mode Noise
– Reduced Second-Harmonic Distortion Due to Differential Output
• Wide Power-Supply Range
– VCC= 5 V Single Supply to ±15 V Dual Supply
• ICC(SD) = 860 µA in Shutdown Mode (THS4130)
APPLICATIONS
• Single-Ended To Differential Conversion
• Differential ADC Driver
• Differential Antialiasing
• Differential Transmitter And Receiver
• Output Level Shifter
