THS4522IPW - TI

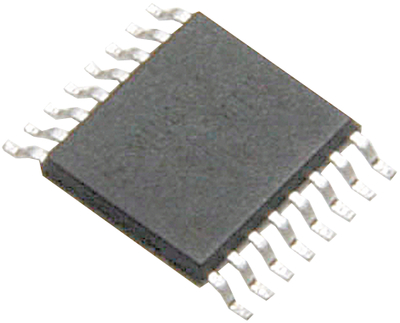

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

THS4522IPW
Manufacturer

TI
ChipWorker Part#

CW39013903
Category

Operational Amplifier, OP Amp IC
Package

TSSOP-16
Description

TEXAS INSTRUMENTS THS4522IPW Differential Amplifier, Low Power, 2 Amplifiers, 2mV, 1.02dB, 95MHz, -40℃, 85℃
Documentation

Datasheet

THS4522IPW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

THS4522IPW Specifications

Attribute	Attribute Value

Part Number	THS4522IPW
Manufacturer	TI
ChipWorker Part#	CW39013903
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Output Current	≤100 mA
Supply Current	1.14 mA
Number of Circuits	2 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	80 dB
Input Offset Drift	2.00 µV/K
Bandwidth	95 MHz
Slew Rate	490 V/μs
Gain Bandwidth Product	95 MHz
Input Offset Voltage	2 mV
Input Bias Current	700 nA
Available Channels	S, Q
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	145 MHz
Gain Bandwidth	95 MHz
Minimum CMRR Range	80 dB
Supply Voltage	2.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The THS4522IPW is a very low power dual channel rail-to-rail output fully Differential Amplifier with rail-to-rail output and an input common-mode range that includes the negative rail. These amplifiers are designed for low-power data acquisition systems and high-density applications where power dissipation is a critical parameter and provide exceptional performance in audio applications. It features accurate output common-mode control that allows for dc-coupling when driving analogue-to-digital converters (ADCs). This control, coupled with an input common-mode range below the negative rail as well as rail-to-rail output, allows for easy interfacing between single-ended, ground-referenced signal sources.
