THS7314D - TI

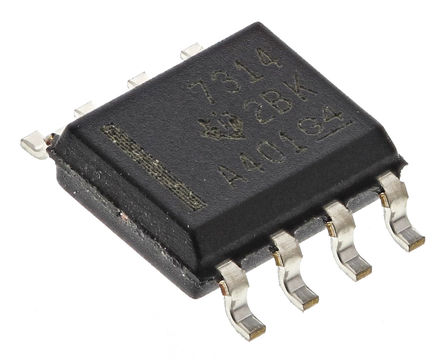

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoTHS7314D
-
ManufacturerTI
-
ChipWorker Part#CW10558728
-
CategoryVideo Amplifier, CATV Amplifier IC
-
PackageSOIC-8
-
DescriptionVideo Amplifier, 3 Amplifiers, 10.3MHz, -40℃, 85℃, 70mA
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
THS7314D Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
THS7314D Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | THS7314D |
| Manufacturer | TI |
| ChipWorker Part# | CW10558728 |
| Category | Video Amplifier, CATV Amplifier IC |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Output Current | 70 mA |
| Supply Current | 16 mA |
| Number of Circuits | 3 Circuit |
| Number of Channels | 3 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 769 mW |
| Gain | 6.00 dB |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 10.3 MHz |
| Power Dissipation (Max) | 769 mW |
| Supply Voltage | 3V ~ 5V |
| expand all | |
| Size-Length | 4.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
Product Description
- DESCRIPTION
- Fabricated using the Silicon-Germanium (SiGe) BiCom-III process, the THS7314 is a low power single-supply 3-V to 5-V 3-channel integrated video buffer. It incorporates a 5th-order Butterworth filter which is useful as a DAC reconstruction filter or an ADC anti-aliasing filter. The 8.5-MHz filter is a perfect choice for SDTV video which includes Composite (CVBS), S-Video, Y"U"V", G"B"R" (R"G"B"), and Y"P"BP"R 480i/576i.
- FEATURES
- • 3 SDTV Video Amplifiers for CVBS, S-Video, Y"P" BP"R 480i/576i, Y"U"V", or G"B"R" (R"G"B")
- • Integrated Low-Pass Filters
- – 5th -Order 8.5-MHz (–3dB) Butterworth
- – –1dB Passband Bandwidth at 7-MHz
- – 47dB Attenuation at 27-MHz
- • Versatile Input Biasing
- – DC-Coupled With 285-mV Output Shift
- – AC-Coupled with Sync-Tip Clamp
- – Allows AC-Coupled With DC-Biasing
- • Built-in 6dB Gain (2V/V)
- • 3-V to 5-V Single Supply Operation
- • Rail-to-Rail Output:
- – Output Swings Within 100-mV From the Rails Allowing AC or DC Output Coupling
- – Able to Drive up to 2 Video Lines – 75 Ω
- • Low 16-mA at 3.3-V Total Quiscent Current
- • Low Differential Gain/Phase of 0.1% / 0.1°
- • SOIC-8 Package
- APPLICATIONS
- • Set Top Box Output Video Buffering
- • PVR/DVDR Output Buffering
- • USB/Portable Low Power Video Buffering
