TL16C752BPTR ,UART Chip, UART Interface IC - TI

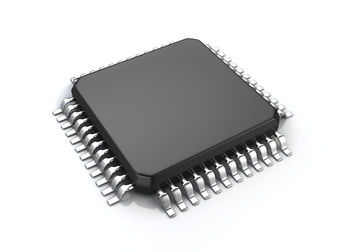

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

143 points

Part No

TL16C752BPTR
Manufacturer

TI
ChipWorker Part#

CW33006792
Category

UART Chip, UART Interface IC
Package

LQFP-48
Description

UART Interface, 2Channel, 3Mbps, 2.7V, 3.6V, LQFP, 48Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

375148 pcs In Stock
Estimated Price

$ 2.42

Buy TL16C752BPTR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TL16C752BPTR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TL16C752BPTR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TL16C752BPTR
Manufacturer	TI
ChipWorker Part#	CW33006792
Category	UART Chip, UART Interface IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Supply Voltage (DC)	2.70V (min)
Operating Voltage	2.7V ~ 3.6V
Supply Current	20 mA
Number of Channels	2 Channel
Number of Positions	48 Position
Data Rate	3.00 Mbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	expand all
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

The TL16C752BPTR is a dual Universal Asynchronous Receiver/Transmitter (UART) with 64-byte FIFOs, automatic hardware/software flow control and data rates up to 3Mbps. It offers enhanced features. It has a transmission control register (TCR) that stores receiver FIFO threshold levels to start/stop transmission during hardware and software flow control. With the FIFO RDY register, the software gets the status of TXRDY/RXRDY for all four ports in one access. On-chip status registers provide the user with error indications, operational status and modem interface control. System interrupts may be tailored to meet user requirements. An internal loopback capability allows onboard diagnostics. The UART transmits data, sent to it over the peripheral 8-bit bus, on the TX signal and receives characters on the RX signal. The UART has a 64-byte receive FIFO and transmit FIFO and can be programmed to interrupt at different trigger levels.
Pin-compatible with ST16C2550 with additional enhancements
Up to 1.5Mbps baud rate when using crystal
Up to 3Mbps baud rate when using oscillator or clock source 64-byte transmit FIFO
64-byte Transmit FIFO
64-byte Receive FIFO with error flags
Programmable and selectable transmit and receive FIFO trigger
Levels for DMA and interrupt generation
Programmable receive FIFO trigger levels for software/hardware flow control
DMA signalling capability for both received and transmitted data
Software selectable baud rate generator
Prescaler provides additional divide-by-4 function
Fast access time 2 clock cycle IOR/IOW pulse width
Programmable sleep mode
Even, odd or no-parity bit generation and detection
False start bit detection
Complete status reporting capabilities in both normal and Sleep mode
Line break detection and generation
Internal test and loopback capabilities
Fully prioritized interrupt system controls
Modem control functions (CTS\, RTS\, DSR\, DTR\, RI\ and DCD\\)
