TLE2024CN - TI

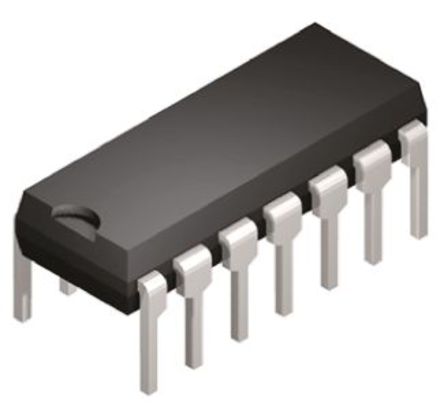

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLE2024CN
Manufacturer

TI
ChipWorker Part#

CW38538066
Category

Operational Amplifier, OP Amp IC
Package

PDIP-14
Description

TEXAS INSTRUMENTS TLE2024CN Operational Amplifier, 4 Amplifier, 2.8MHz, 0.7V/µs, ± 2V to ± 20V, DIP, 14Pins
Documentation

Datasheet

TLE2024CN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLE2024CN Specifications

Attribute	Attribute Value

Part Number	TLE2024CN
Manufacturer	TI
ChipWorker Part#	CW38538066
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Output Current	≤40 mA
Supply Current	1.05 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	1.15 W
Common Mode Rejection Ratio	80 dB
Input Offset Drift	2.00 µV/K
Bandwidth	2.8 MHz
Slew Rate	500 mV/μs
Gain Bandwidth Product	1.7 MHz
Input Offset Voltage	1 mV
Input Bias Current	50 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	2.8 MHz
Power Dissipation (Max)	1150 mW
Minimum CMRR Range	80 dB
	expand all
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

The TLE2024CN is a quad precision high-speed low-power Operational Amplifier using a new Texas Instruments Excalibur process. This device combines the best features of the OP21 with highly improved slew rate and unity-gain bandwidth. The complementary bipolar Excalibur process utilizes isolated vertical PNP transistors that yield dramatic improvement in unity-gain bandwidth and slew rate over similar devices. The addition of a bias circuit in conjunction with this process results in extremely stable parameters with both time and temperature. This means that a precision device remains a precision device even with changes in temperature and over years of use. This combination of excellent DC performance with a common-mode input voltage range that includes the negative rail makes this device the ideal choice for low-level signal conditioning applications in either single-supply or split-supply configurations.
Phase-reversal protection
300µA Maximum supply current
10µA at VCC±=±15V Typical supply-current change over military temperature range
6.5V/µV (136dB) Typical high open-loop gain
100µV Maximum low offset voltage
0.005µV/mo Typical offset voltage drift with time
50nA Maximum low input bias current
19nV/√Hz Typical low noise voltage
