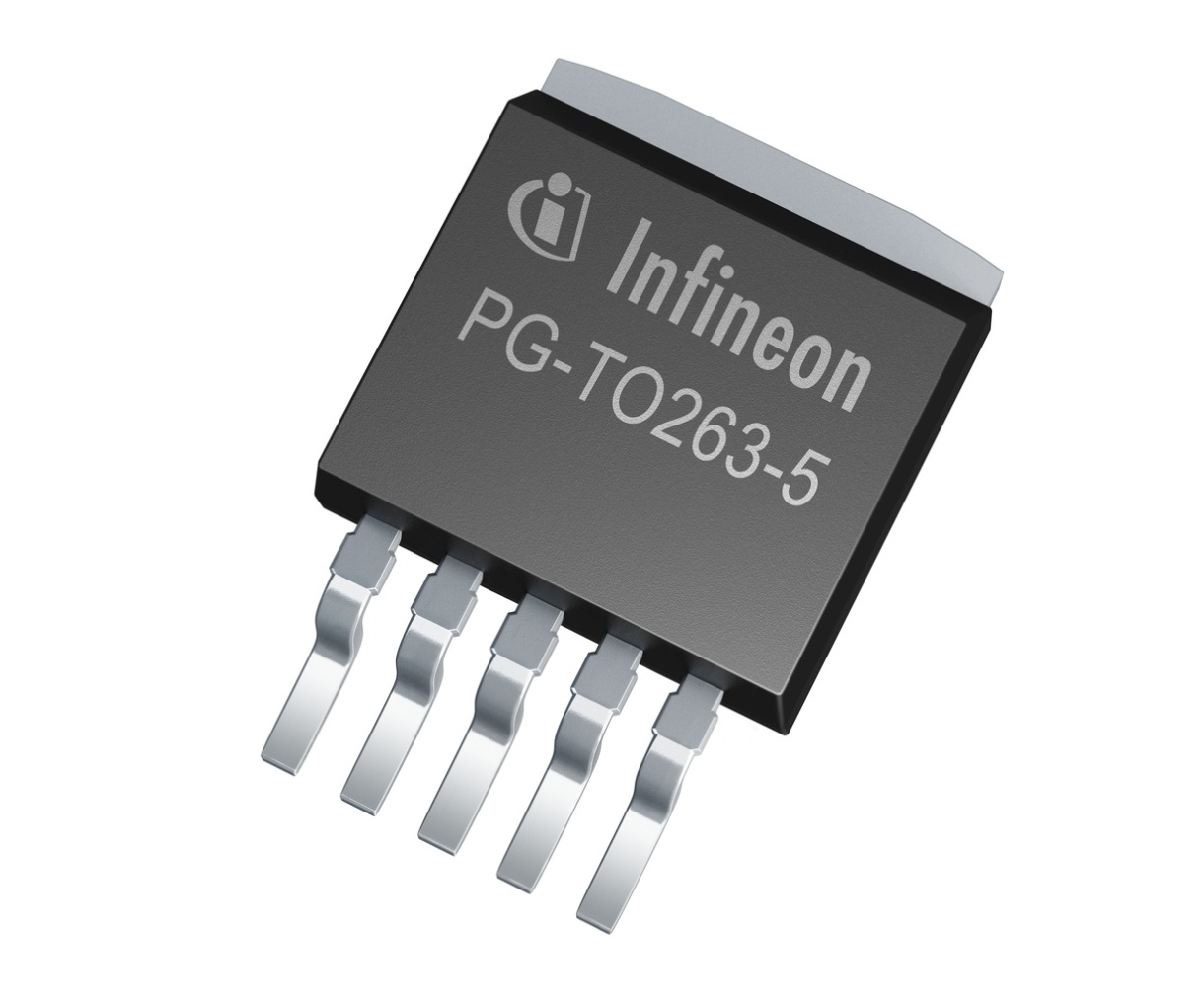

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLE4252G
Manufacturer

Infineon
ChipWorker Part#

CW70625469
Category

Voltage Regulator
Package

TO-263-5
Description

LDO Regulator Pos 1.5V to 40V 0.25A 6Pin TO-263 T/R
Documentation

Datasheet

TLE4252G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLE4252G Specifications

Attribute	Attribute Value

Part Number	TLE4252G
Manufacturer	Infineon
ChipWorker Part#	CW70625469
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-5
Number of Outputs	1 Output
Output Voltage	1.5V ~ 40V
Output Current	200 mA
Supply Current	100 µA
Number of Positions	5 Position
Quiescent Current	2 µA
voltage rating	0.28V @200mA
Input Voltage (Max)	40 V
Input Voltage (Min)	3.5 V
Output Voltage (Min)	1.5 V
Output Current (Max)	500 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.2 %
Operating Voltage (Max)	40.0 V
Supply Voltage	3.5V ~ 40V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	3.5 V
Input Voltage	3.5V ~ 40V
	expand all
Size-Length	10 mm
Size-Width	10.25 mm
Size-Height	4.4 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

Description:
The TLE4252G is a monolithic integrated low-drop voltage tracking regulator in a very small SMD package PG-TO263-5. It is designed to supply off-board systems, e.g. sensors in engine management systems under the severe conditions of automotive applications. Therefore the device is equipped with additional protection functions against reverse polarity and short circuit to GND and battery. With supply voltages up to 40 V, the output voltage follows a reference voltage applied at the adjust input with high accuracy. The reference voltage applied directly to the adjust input or by an e.g. external resistor divider can be 1.5 V minimum. The output is able to drive loads up to 250 mA. The TLE 4252 tracker can be switched into stand-by mode to reduce the current consumption to very low values. This feature makes the IC suitable for low-power battery applications.
Summary of Features:
Output tracking tolerance to reference ≤ ±0.2%
Output voltage adjust down to 1.5 V
250 mA output current capability
Enable function
Very low current consumption in OFF mode
Wide operation range: up to 40 V
Wide temperature range: -40 °C ≤ T j ≤ 150 °C
Output protected against short circuit to GND and Battery
Overtemperature protection
Reverse polarity proof
Green Product (RoHS compliant)
AEC Qualified
Benefits:
Efficient and accurate voltage replication
Heat distribution in the system
Robust tracking supply
