TLE42764DV - Infineon

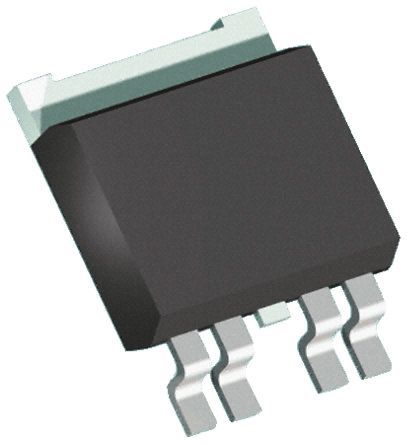

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLE42764DV
Manufacturer

Infineon
ChipWorker Part#

CW5172340
Category

Voltage Regulator
Package

TO-252-5
Description

LDO Regulator Pos 2.5V to 20V 0.4A Automotive 5Pin(4+Tab) TO-252
Documentation

Datasheet

TLE42764DV Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLE42764DV Specifications

Attribute	Attribute Value

Part Number	TLE42764DV
Manufacturer	Infineon
ChipWorker Part#	CW5172340
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-5
Number of Outputs	1 Output
Output Voltage	2.5V ~ 20V
Output Current	400 mA
Supply Current	220µA ~ 25mA
Number of Positions	5 Position
Quiescent Current	220 µA
voltage rating	250 mV
Input Voltage (Max)	40 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	20 V
Output Voltage (Min)	2.5 V
Output Current (Max)	1.1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	40 V
	expand all
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Linear Voltage Regulator IC Output
