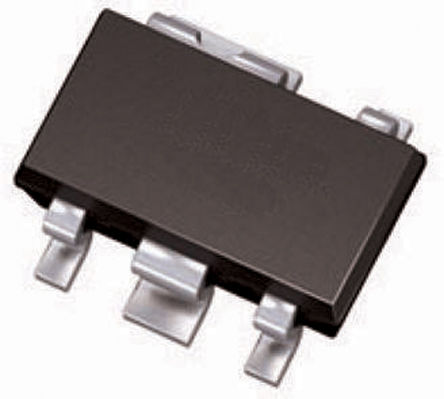

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLE4285G
Manufacturer

Infineon
ChipWorker Part#

CW68693672
Category

Voltage Regulator
Package

SCT-595-5
Description

INFINEON TLE4285G Fixed LDO Voltage Regulator, 6V to 42V, 800mV Dropout, 5Vout, 70mAout, SMD-5
Documentation

Datasheet

TLE4285G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLE4285G Specifications

Attribute	Attribute Value

Part Number	TLE4285G
Manufacturer	Infineon
ChipWorker Part#	CW68693672
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SCT-595-5
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	70 mA
Number of Positions	5 Position
Quiescent Current	150 µA
voltage rating	800 mV
Input Voltage (Max)	42 V
Input Voltage (Min)	6 V
Output Current (Max)	15 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±4 %
Input Voltage	6V ~ 42V
	expand all
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The TLE4285G is a 5V fixed output low-dropout (LDO) Linear Regulator operates at maximum input voltage of 45V. The output is able to drive an output current of more than 10mA while it regulates the output voltage within a 4% accuracy. The power fail output (open collector) is switched to low in case of under-voltage at the output pin. To reduce external components the power fail output has an internal pull-up resistor of 50kR which is connected to the output Q. The device incorporates a temperature protection that disables the circuit at overtemperature.
