TLE7182EM - Infineon

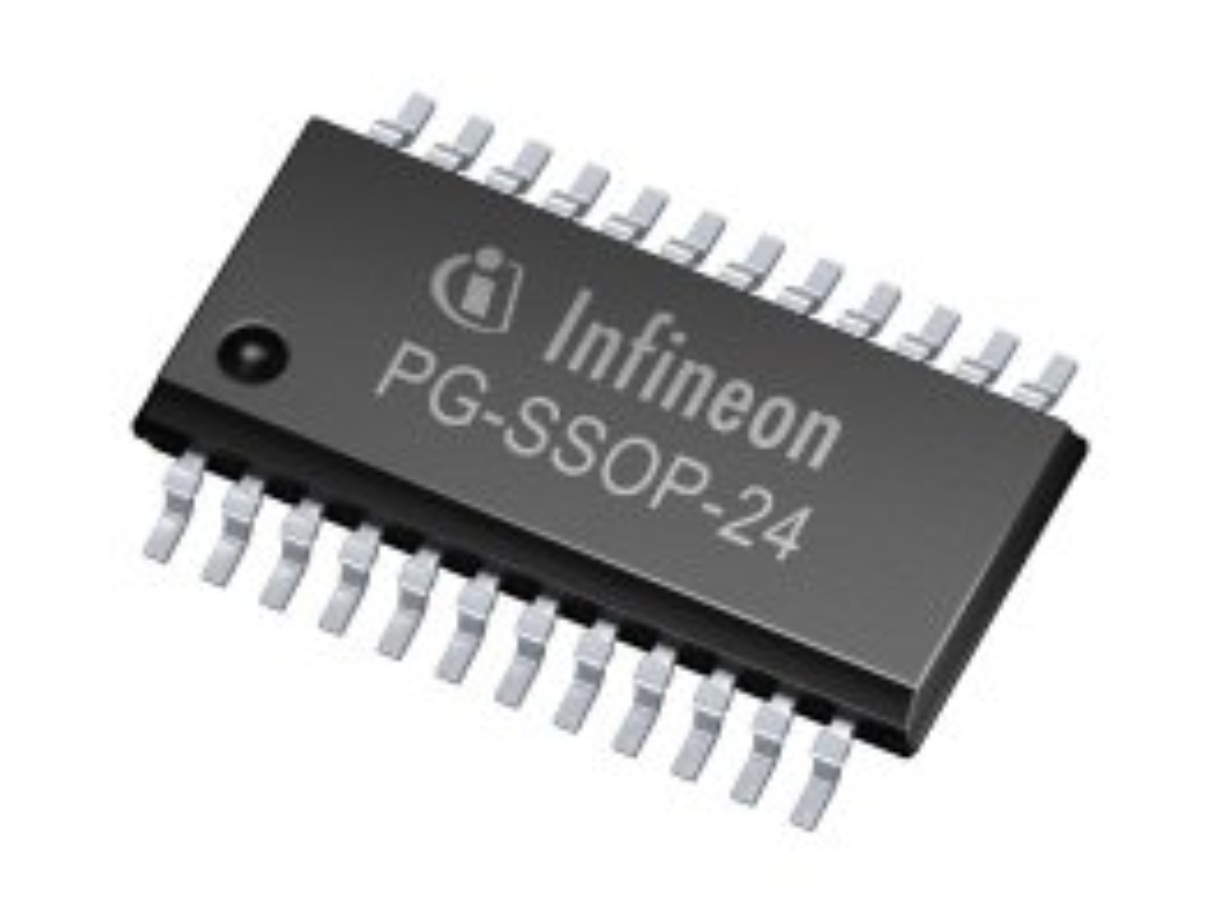

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLE7182EM
Manufacturer

Infineon
ChipWorker Part#

CW20235329
Category

FET Driver
Package

SSOP-24
Description

2xH-Br 6V SSOP-24 SMD **
Documentation

Datasheet

TLE7182EM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLE7182EM Specifications

Attribute	Attribute Value

Part Number	TLE7182EM
Manufacturer	Infineon
ChipWorker Part#	CW20235329
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SSOP-24
Power Rating	2 W
Number of Outputs	4 Output
Power Dissipation	2 W
	expand all
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Description:
The TLE7182EM is a H-bridge driver IC dedicated to control 4 N-channel MOSFETs typically forming the converter for a high current DC motor drives in the automotive sector. It incorporates several protection features such as over current and short circuit detection as well as under-, over voltage and over temperature diagnosis. The TLE7182EM perfectly fits for driving 2 valves or solenoids too. Typical applications are fans, pumps and electric power steering. The TLE7182EM is designed for a 12V power net.
Summary of Features:
Drives 4 N-Channel Power MOSFETs
Separate control input for each MOSFET
Unlimited D.C. switch on time of Low and Highside MOSFETs
0 …95% at 20kHz & 100% Duty cycle of High Side MOSFETs
0 ... 100 % Duty cycle of Low Side MOSFETs
Additional output to drive a reverse polarity protection N-MOSFET
Current sense OPAMP
Low quiescent current mode
Internal shoot through protection and minimum internal dead time option
1 bit diagnosis / ERR
Over current warning based on current sense OPAMP with fixed warning level
Analog adjustable Short Circuit Protection levels via SCDL pin with open pin detection and SCD deactivation
Over temperature warning
Over voltage warning
Under voltage warning and shutdown
Green Product (RoHS compliant)
AEC Qualified
Benefits:
Improved application efficiency
High temperature robustness through expose pad
