TLE72593LEXUMA1 ,LIN IC, Local Interconnect Network - Infineon

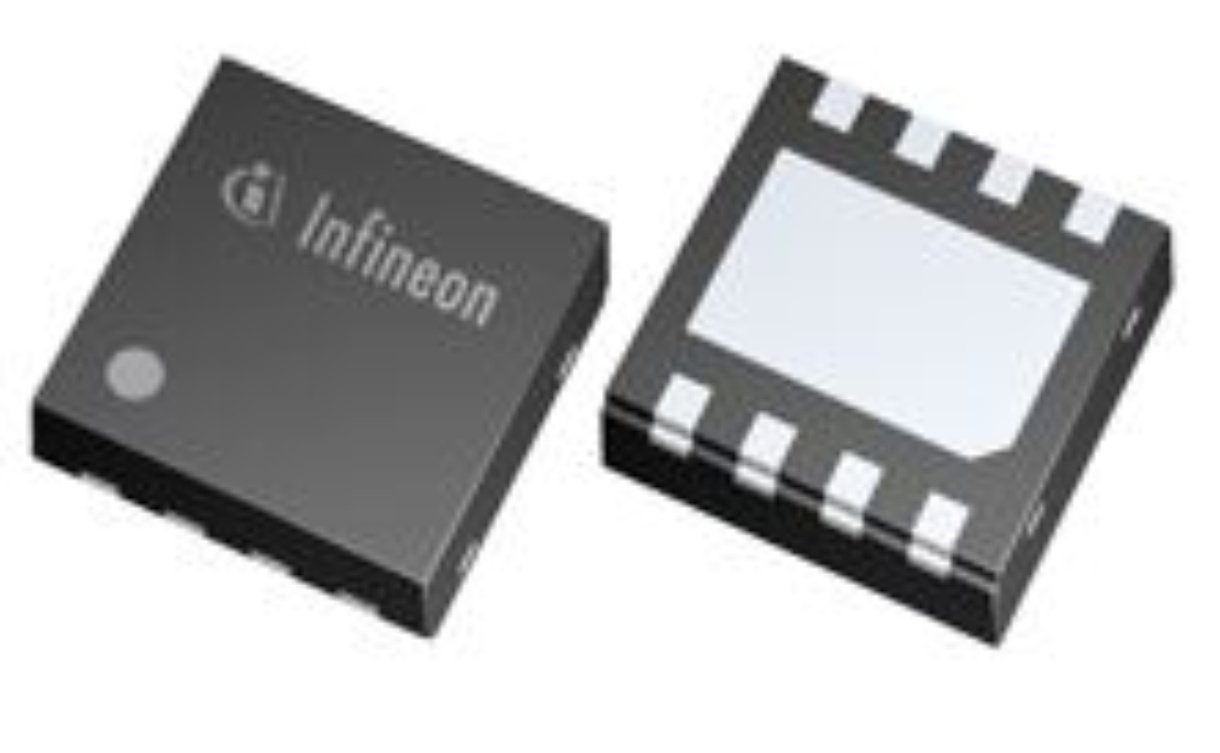

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

54 points

Part No

TLE72593LEXUMA1
Manufacturer

Infineon
ChipWorker Part#

CW69968371
Category

LIN IC, Local Interconnect Network
Package

PG-TSON-8
Description

LIN TRANSCEIVER SINGLE-WIRE LIN TRANSCEIVER FOR TRANSMISSION RATES UP TO 20KBPS
Documentation

Datasheet
Ships from

Moscow
Наличие

4471 pcs In Stock
Estimated Price

$ 0.91

Buy TLE72593LEXUMA1

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TLE72593LEXUMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TLE72593LEXUMA1 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TLE72593LEXUMA1
Manufacturer	Infineon
ChipWorker Part#	CW69968371
Category	LIN IC, Local Interconnect Network
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-TSON-8
Number of Positions	8 Position
Supply Voltage	5.5V ~ 27V
Supply Voltage (Max)	27 V
Supply Voltage (Min)	5.5 V
	expand all
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Description:
The TLE7259-3 is a transceiver for the Local Interconnect Network (LIN) with integrated wake-up and protection features. It is designed for in-vehicle networks using data transmission rates from 2.4 kbps to 20 kbps. The TLE7259-3 operate as a bus driver between the protocol controller and the physical bus of the LIN network. Compliant to all LIN standards and with a wide operational supply range the TLE7259-3 can be used in all automotive applications.
The usage of different operation modes and the INH output allow the TLE7259-3 to control external components, like e.g. voltage regulators. In Sleep-mode the TLE7259-3 draws typically less than 8 μA of quiescent current while still being able to wake up when detecting LIN bus traffic and a local wake up signalst. The very low leakage current on the BUS pin makes the TLE7259-3 especially suitable for partially supplied networks.
Based on the Infineon Smart Power Technology SPT®, the TLE7259-3 provides excellent ESD Robustness and a very high electromagnetic compliance (EMC). The TLE7259-3 reaches very low levels of electromagnetic emission within a broad frequency range, independent from the battery voltage. The TLE7259-3 and the Infineon SPT® technology are AEC qualified and tailored to withstand the harsh condition of the automotive environment.
Summary of Features:
Single-wire LIN transceiver for transmission rates up to 20 kbps
Compliant to ISO 17987-4 and LIN Specification 2.2A
Very low current consumption in sleep mode with wake-up functions
Very low leakage current on the BUS pin
Digital I/O levels compatible with 3.3 V and 5 V microcontrollers
TxD protected with dominant time-out function
Improved receiver performance: Reduced progration delay and increased delay symmetry
BUS short to V BAT protection and BUS short to GND handling
Over temperature protection and supply undervoltage detection
Flash mode supporting accelerated microcontroller programming
Very high ESD robustness, ± 15 kV according to IEC61000-4-2
Optimized for high electromagnetic compatibility (EMC); Very low emission and high immunity to interference
Availible in standard PG-DSO-8 and leadless PG-TSON-8 packages
PG-TSON-8 package supports Automated Optical Inspection (AOI)
Suitable for 12 V and 24 V board net
Green Product (RoHS compliant)
AEC Qualified
