TLV320AIC23BIPW - TI

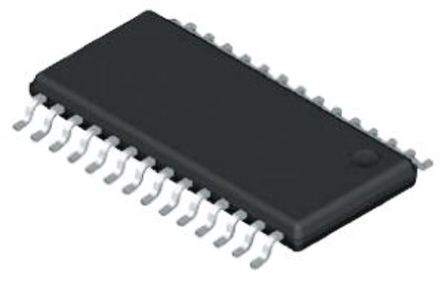

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLV320AIC23BIPW
Manufacturer

TI
ChipWorker Part#

CW4858592
Category

CODEC
Package

TSSOP-28
Description

Audio Codec 2ADC / 2DAC 32Bit 28Pin TSSOP Tube
Documentation

Datasheet

TLV320AIC23BIPW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLV320AIC23BIPW Specifications

Attribute	Attribute Value

Part Number	TLV320AIC23BIPW
Manufacturer	TI
ChipWorker Part#	CW4858592
Category	CODEC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	TSSOP-28
Number of Channels	2 Channel
Number of Positions	28 Position
Number of Bits	24 Bit
Sample Rate	96 KSPS
Power Consumption	23.0 mW
Bandwidth	20.0 kHz
Number of ADCs	2 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	3 Channel
Number of Output Channels	4 Channel
Number of DACs	2 DAC
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7V, 1.42V
	expand all
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

The TLV320AIC23BIPW is a Low-power Stereo Codec with HP amplifier and highly integrated analogue functionality. The analogue-to-digital converters (ADCs) and digital-to-analogue converters (DACs) within the TLV320AIC23B use multibit sigma-delta technology with integrated oversampling digital interpolation filters. Data-transfer word lengths of 16, 20, 24 and 32 bits with sample rates from 8 to 96kHz are supported. The ADC sigma-delta modulator features third-order multibit architecture with up to 90dBA signal-to-noise ratio (SNR) at audio sampling rates up to 96kHz, enabling high-fidelity audio recording in a compact, power-saving design. The DAC sigma-delta modulator features a second-order multibit architecture with up to 100dBA SNR at audio sampling rates up to 96kHz, enabling high-quality digital audio-playback capability, while consuming less than 23mW during playback only.
High-performance stereo codec
Software control via McBSP-compatible multiprotocol serial port
Audio-data input/output via McBSP-compatible programmable audio interface
Integrated total electret-microphone biasing and buffering solution
Stereo-line inputs
ADC multiplexed input for stereo-line inputs and microphone
Stereo-line outputs
Volume control with mute on input and output
Highly efficient linear headphone amplifier
Flexible power management under total software control
Green product and no Sb/Br
