TLV70033DDCR - TI

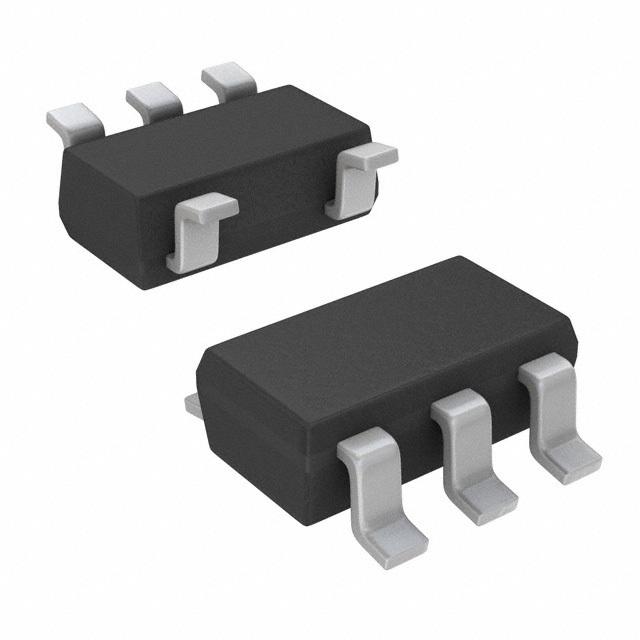

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLV70033DDCR
Manufacturer

TI
ChipWorker Part#

CW43144
Category

Voltage Regulator
Package

TSOT-23-5
Description

Single Channel LDO 200mA, Low IQ, Low Dropout Regulator for Portables LDO Regulator Pos 3.3V 0.2A 5Pin TSOT-23 T/R
Documentation

Datasheet

TLV70033DDCR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLV70033DDCR Specifications

Attribute	Attribute Value

Part Number	TLV70033DDCR
Manufacturer	TI
ChipWorker Part#	CW43144
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	200 mA
Number of Positions	5 Position
Power Dissipation	0.5 W
Quiescent Current	30.0 µA
Output Capacitor Type	Ceramic
voltage rating	175 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	500 mW
Accuracy	2 %
Number of Output Channels	1 Channel
Input Voltage	≤5.5 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR

Product Description

Make a theoretical system actual by providing stable voltages with this LDO TLV70033DDCR linear regulator from Texas Instruments. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 500 mW. This voltage regulation device"s single output can produce a current up to 0.2 A. Use this part at voltages between 2 V and 5.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. At a load regulation of 1mV(Typ) and line regulation of 1mV(Typ) a constant current can be produced at the output of your circuit. Its maximum power dissipation is 500 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
