TLV70233DSER - TI

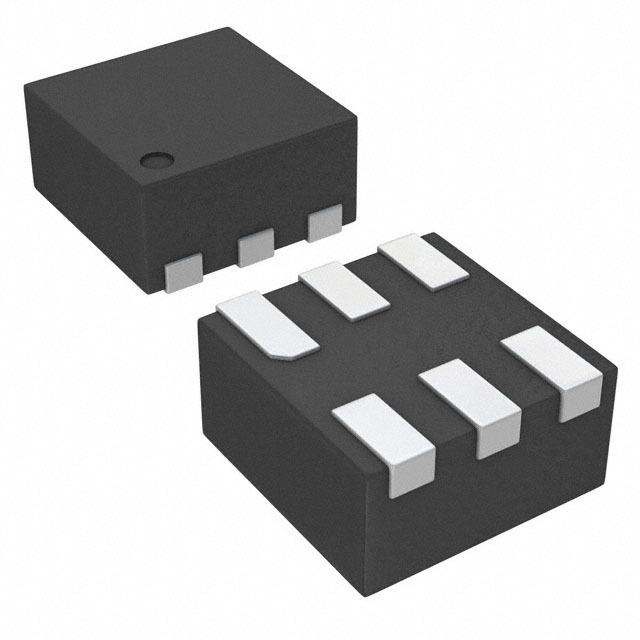

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLV70233DSER
Manufacturer

TI
ChipWorker Part#

CW17015593
Category

Voltage Regulator
Package

WFDFN-6
Description

TEXAS INSTRUMENTS TLV70233DSER Fixed LDO Voltage Regulator, 2V to 5.5V, 260mV Dropout, 3.3Vout, 300mAout, WSON-6
Documentation

Datasheet

TLV70233DSER Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLV70233DSER Specifications

Attribute	Attribute Value

Part Number	TLV70233DSER
Manufacturer	TI
ChipWorker Part#	CW17015593
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WFDFN-6
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	300 mA
Number of Positions	6 Position
Power Dissipation	555 W
Quiescent Current	30.0 µA
Output Capacitor Type	Ceramic
voltage rating	260 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	≤5.5 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR

Product Description

The TLV70233DSER is a single channel low dropout (LDO) linear regulator with fixed output in 6 pin WSON package. This regulator is a low quiescent current device with excellent line and load transient performance. It is designed for power sensitive applications. A precision band-gap and error amplifier provides overall 2% accuracy. The low output noise, very high power supply rejection ratio (PSRR) and low dropout voltage of this regulator make this device as an ideal device for wide selection of battery operated handheld equipment. The TLV70233 has thermal shutdown, overcurrent protection and current limit for safety. It is stable with an effective output capacitance of only 0.1µF. This feature enables the use of cost effective capacitors that have higher bias voltages and temperature de-rating. The device regulate to specified accuracy with no output load.
Fixed output voltage of 3.3V
Very low dropout voltage of 260mV at 300mA output current
Input voltage range from 2V to 5.5V
Output current of 300mA
Low quiescent current of 35µA
High PSRR of 68dB at 1KHz
Operating temperature range from -40°C to 125°C
This device has limited built-in ESD protection. The leads should be shorted or device should be placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.
