TOP245YN - Power Integrations

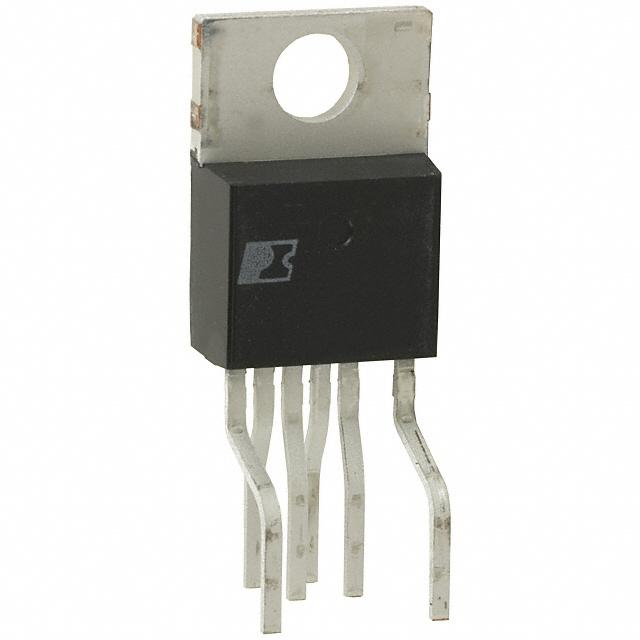

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TOP245YN
Manufacturer

Power Integrations
ChipWorker Part#

CW1662144
Category

AC to DC Converter, AC/DC Power Module
Package

TO-220-7
Description

AC-DC Converters 60W 85-265VAC 85W 230VAC
Documentation

Datasheet

TOP245YN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TOP245YN Specifications

Attribute	Attribute Value

Part Number	TOP245YN
Manufacturer	Power Integrations
ChipWorker Part#	CW1662144
Category	AC to DC Converter, AC/DC Power Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	TO-220-7
Frequency	132 kHz
Supply Voltage (DC)	265 V
Power Rating	85 W
Number of Outputs	1 Output
Output Voltage	700 V
Output Current	2.88 A
Breakdown Voltage	700 V
Supply Current	1.60 mA
Number of Positions	6 Position
Number of Regulated Outputs	1 Output
Output Power	60 W
Switching Frequency	132 kHz
Duty Cycle	66.5 %
Maximum Duty Cycle	83 %
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	265 VAC
Input Voltage	85.265 V
	expand all
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The TOP245YN is a TOPSwitch-GX EcoSmart integrated off line switcher in 6 pin TO-220 package. TOPSwitch-GX uses same proven topology as TOPSwitch which cost effectively by integrating high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip. Many new functions are integrated to reduce system cost, improve design flexibility, high performance and energy efficient. The TOP245YN features soft start, frequency jittering for lower EMI, wider DCMAX, hysteretic thermal shutdown and larger creepage packages. In addition all critical parameters (current limit, frequency, PWM gain) have tighter temperature and absolute tolerances to simplify design and optimize system cost.
Output power of 85W at 230VAC and 60W at 85VAC to 265VAC in open frame design
Output power of 40W at 230VAC and 26W at 85VAC to 265VAC in non ventilated enclosed adapter
Extended power range for higher power applications
Wider duty cycle for more power, smaller input capacitor
Regulates to zero load without dummy loading
132KHz frequency reduces transformer/power supply size
Hysteretic thermal shutdown for automatic fault recovery
Large thermal hysteresis prevents PC board overheating
Switching frequency of 132KHz (frequency pin connected to source) and 66KHz (connected to control)
Operating junction temperature range from -40°C to 150°C
