TPD4EUSB30DQAR - TI

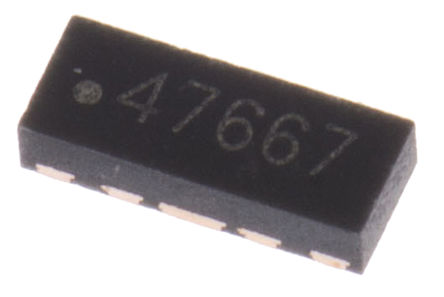

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPD4EUSB30DQAR
Manufacturer

TI
ChipWorker Part#

CW5402640
Category

TVS Diode
Package

UFDFN-10
Description

4Channel ESD Solution for SuperSpeed (6Gbps) USB 3Interface 10-USON -40℃ to 85℃
Documentation

Datasheet

TPD4EUSB30DQAR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPD4EUSB30DQAR Specifications

Attribute	Attribute Value

Part Number	TPD4EUSB30DQAR
Manufacturer	TI
ChipWorker Part#	CW5402640
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UFDFN-10
Supply Voltage (DC)	3.60V (min)
Current Rating	5 A
Capacitance	0.8 pF
Breakdown Voltage	7 V
Number of Channels	4 Channel
Number of Positions	10 Position
Forward Voltage	0.8 V
Power Dissipation	45 W
Data Rate	6.00 Gbps
Clamping Voltage	8 V
Peak Pulse Power	45 W
Min Breakdown Voltage	7 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	2.6 mm
Size-Width	1.1 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The TPD4EUSB30DQAR is an ESD Protection Device for super-speed USB 3.0 interface. It is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (contact). It offers 5A (8/20µs) peak pulse current ratings per IEC 61000-4-5 (surge) specification.
Supports USB 3.0 data rates (5Gbps)
0.7pF Low capacitance
0.6R Dynamic resistance
Flow-through pin mapping
100nA Maximum IO leakage current
-40 to 85°C Operating temperature range
