TPS22916BYFPR - TI

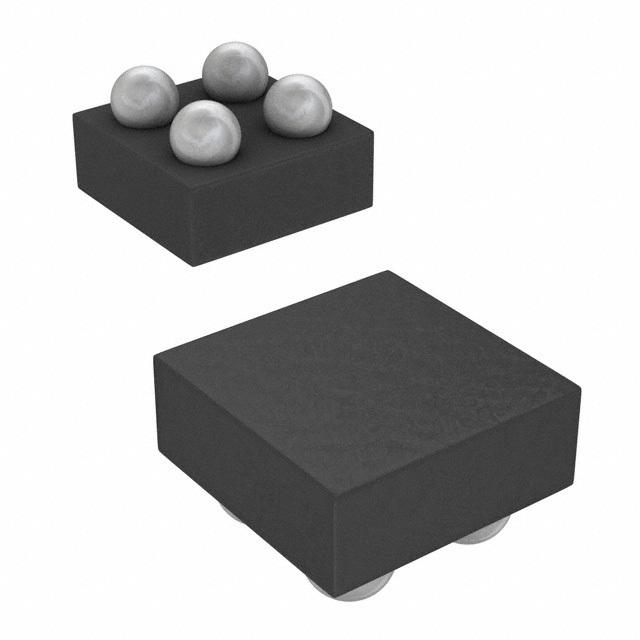

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS22916BYFPR
Manufacturer

TI
ChipWorker Part#

CW38284622
Package

DSBGA-4
Description

Power Switch 1Out 2A 0.2Ω 4Pin DSBGA
Documentation

Datasheet

TPS22916BYFPR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS22916BYFPR Specifications

Attribute	Attribute Value

Part Number	TPS22916BYFPR
Manufacturer	TI
ChipWorker Part#	CW38284622
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	DSBGA-4
Number of Outputs	1 Output
Output Voltage	0V ~ 5.5V
Supply Current	0.0005 mA
Output Current (Max)	2 A
Output Current (Min)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status

Product Description

Power Switch/Driver 1:1 P-Channel 2A 4-DSBGA (0.74x0.74)
