TPS22965TDSGRQ1 - TI

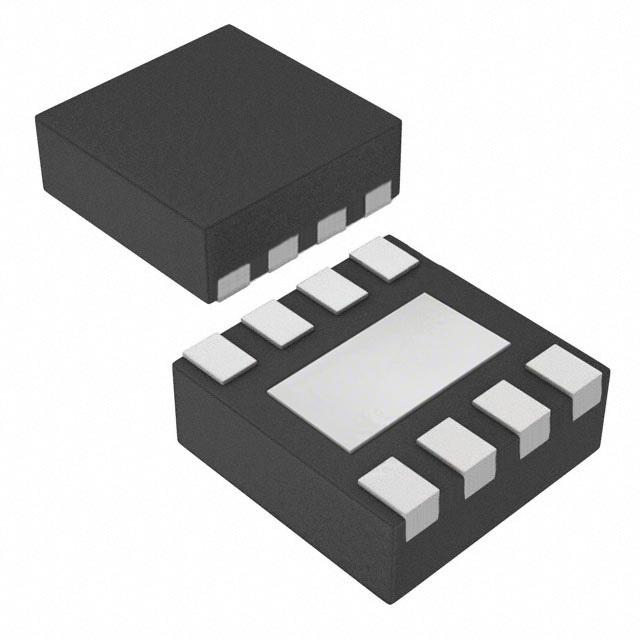

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS22965TDSGRQ1
Manufacturer

TI
ChipWorker Part#

CW3694648
Category

Analog Switch Ic, Analog Switch Multiplexer
Package

WFDFN-8
Description

5.5V, 4A, 16mΩ Automotive High-Side Load Switch With Adjustable Rise Time & Quick Output Discharge 8-WSON -40 to 105
Documentation

Datasheet

TPS22965TDSGRQ1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS22965TDSGRQ1 Specifications

Attribute	Attribute Value

Part Number	TPS22965TDSGRQ1
Manufacturer	TI
ChipWorker Part#	CW3694648
Category	Analog Switch Ic, Analog Switch Multiplexer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WFDFN-8
Number of Outputs	1 Output
Output Current	4 A
Number of Channels	1 Channel
Quiescent Current	50.0 µA
Output Current (Max)	4 A
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Input Voltage	0.8V ~ 5.5V
	expand all
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

High voltage can be tricky, use this TPS22965TDSGRQ1 power switch by Texas Instruments to make it easier to switch on and off. This charge controller has single output. It features 16 Ohm switch on resistance. This charge controller has an input voltage of 0.8 to 5.5 V. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This charge controller has an operating temperature range of -40 °C to 105 °C.
