TPS259261DRCR - TI

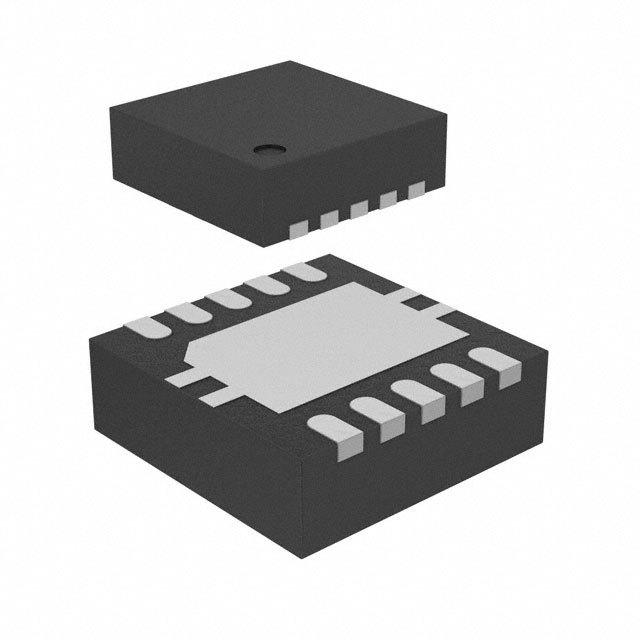

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS259261DRCR
Manufacturer

TI
ChipWorker Part#

CW10172433
Category

Power Distribution
Package

VSON-10
Description

12V, 5A, 30mΩ eFuse with Adjustable +/-15% Accurate Current Limit 10-VSON -40℃ to 85℃
Documentation

Datasheet

TPS259261DRCR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS259261DRCR Specifications

Attribute	Attribute Value

Part Number	TPS259261DRCR
Manufacturer	TI
ChipWorker Part#	CW10172433
Category	Power Distribution
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSON-10
Output Current	5 A
Supply Current	470 µA
Number of Channels	1 Channel
Output Current (Max)	5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±15 %
Supply Voltage	4.5V ~ 13.8V
Input Voltage	4.5V ~ 13.8V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The TPS25925x/6x family of eFuses is a highly integrated circuit protection and power management solution in a tiny package. The devices use few external components and provide multiple protection modes. They are a robust defense against overloads, shorts circuits, voltage surges, excessive inrush current. Current limit level can be set with a single external resistor and current limit set has a typical accuracy of ±15%. Over voltage events are limited by internal clamping circuits to a safe fixed maximum, with no external components required. TPS25926x devices provide over voltage protection (OVP) for 12-V systems and TPS25925x devices for 5-V systems. In cases with particular voltage ramp requirements, a dV/dT pin is provided that can be programmed with a single capacitor to ensure proper output ramp rates.
