TPS3809K33QDBVRQ1 - TI

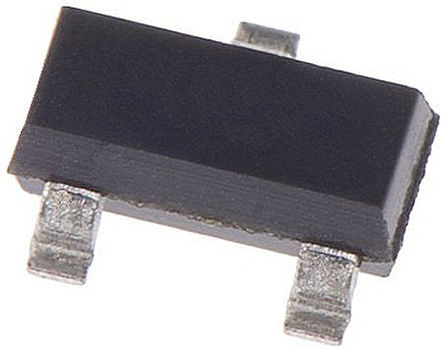

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS3809K33QDBVRQ1
Manufacturer

TI
ChipWorker Part#

CW20812155
Category

Power Monitor
Package

SOT-23-3
Description

Processor Supervisor 2.93V 2.5V/3V/3.3V/5V Automotive 3Pin SOT-23 T/R
Documentation

Datasheet

TPS3809K33QDBVRQ1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS3809K33QDBVRQ1 Specifications

Attribute	Attribute Value

Part Number	TPS3809K33QDBVRQ1
Manufacturer	TI
ChipWorker Part#	CW20812155
Category	Power Monitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Supply Voltage (DC)	2.00V (min)
Supply Current	0.03 mA
Number of Positions	3 Position
Power Dissipation	0.437 W
Quiescent Current	9.00 µA
Threshold Voltage	2.93 V
Reset Threshold Voltage (Min)	2.87 V
Reset Threshold Voltage (Max)	2.99 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	437 mW
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	3 mm
Size-Width	1.7 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
ECCN Code	EAR99

Product Description

The TPS3809K33QDBVRQ1 is a Supervisory Circuit with active-low push-pull output. The supervisory circuit provides circuit initialization and timing supervision, primarily for DSPs and processor-based systems. During power-on, /RESET is asserted when the supply voltage VDD becomes higher than 1.1V. Thereafter, the supervisory circuit monitors VDD and keeps /RESET active as long as VDD remains below the threshold voltage VIT. An of the output to the inactive internal timer delays the return state (high) to ensure proper system reset. The delay time, td(typ) of 200ms, starts after VDD has risen above the threshold voltage VIT. When the supply voltage drops below the threshold voltage VIT, the output becomes active (low) again. No external components are required. It has a fixed sense-threshold voltage VIT set by an internal voltage divider.
power-ON reset generator
Pin-to-Pin-compatible with MAX 809
9µA Typical supply current
Green product and no Sb/Br
