TPS5120DBT - TI

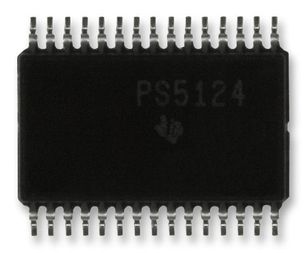

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS5120DBT
Manufacturer

TI
ChipWorker Part#

CW50142368
Category

DC to DC Converter
Package

TSSOP-30
Description

TEXAS INSTRUMENTS TPS5120DBT DC-DC Controller, 2-Phase, 4.5V to 28V, 2Outputs, Synchronous Buck, 500kHz, TSSOP-30
Documentation

Datasheet

TPS5120DBT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS5120DBT Specifications

Attribute	Attribute Value

Part Number	TPS5120DBT
Manufacturer	TI
ChipWorker Part#	CW50142368
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	30 Pin
Case/Package	TSSOP-30
Frequency	300 kHz
Supply Voltage (DC)	4.50V (min)
Number of Outputs	2 Output
Output Voltage	0.9V ~ 24V
Output Current	20 A
Power Dissipation	874 mW
Quiescent Current	1.10 mA
Number of Regulated Outputs	2 Output
Switching Frequency	300 kHz
Thermal Shutdown	Yes
Topology	Buck
Duty Cycle	83 %
Input Voltage (Max)	28 V
Input Voltage (Min)	4.5 V
Output Current (Max)	20 A
Maximum Duty Cycle	0.83
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	874 mW
Supply Voltage	4.5V ~ 28V
Supply Voltage (Max)	28 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 28V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

description
The TPS5120 is a dual channel, high-efficiency synchronous buck controller where the outputs run 180 degrees out of phase, which lowers the input current ripple, thereby reducing the input capacitance cost. The PWM/SKIP pin allows the operating mode to switch from PWM mode to skip mode under light load conditions. The skip mode enables a lower operating frequency and shortens the pulse width to the low-side MOSFET, increasing the efficiency under light load conditions.
Independent Dual-Outputs Operate 180° Out of Phase
Wide Input Voltage Range: 4.5-V –28-V
Adjustable Output Voltage Down to 0.9 V
Pin-Selectable PWM/SKIP Mode for High
Efficiency Under Light Loads
Synchronous Buck Operation Allows up to 95% Efficiency
Separate Standby Control and Overcurrent Protection for Each Channel
Programmable Short-Circuit Protection
Low Supply (1 mA) and Shutdown (1 nA) Current
Power Good Output
High-Speed Error Amplifiers
Sequencing Easily Achieved by Selecting
Softstart Capacitor Values.
5-V Linear Regulator Power Internal IC Circuitry
30-Pin TSSOP Packaging
