TPS51315RGFT - TI

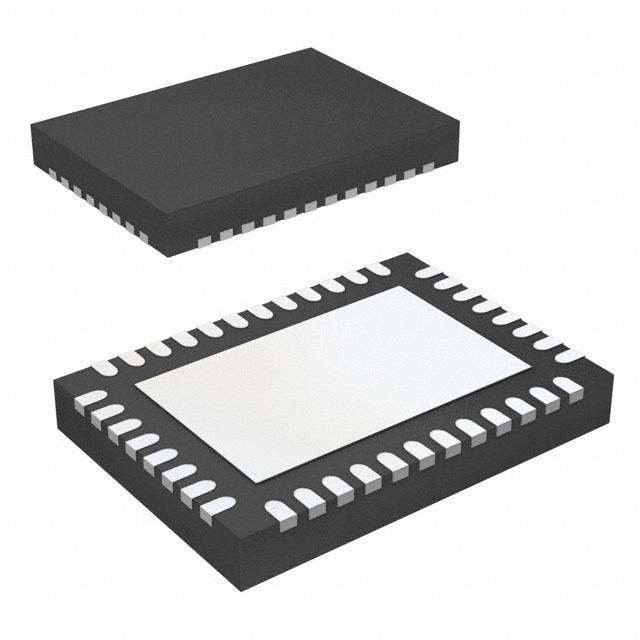

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS51315RGFT
Manufacturer

TI
ChipWorker Part#

CW33980333
Category

DC to DC Converter
Package

VQFN-40
Description

Step-Down Regulator 3V to 14V, 10A Synchronous Step Down Converter with D-CAP Mode Conv DC-DC Single Step Down 3V to 14V 40Pin VQFN EP T/R
Documentation

Datasheet

TPS51315RGFT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS51315RGFT Specifications

Attribute	Attribute Value

Part Number	TPS51315RGFT
Manufacturer	TI
ChipWorker Part#	CW33980333
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	VQFN-40
Frequency	1 MHz
Number of Outputs	1 Output
Output Voltage	0.75V ~ 5.5V
Output Current	10 A
Number of Positions	40 Position
Quiescent Current	400 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1 MHz
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	14 V
Input Voltage (Min)	3 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	750 mV
Output Current (Max)	10 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	1 %
Supply Voltage	3 V
Supply Voltage (Min)	3 V
Input Voltage	3V ~ 14V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The TPS51315RGFT is a synchronous Step-down Converter with integrated MOSFETs. The combination of D-CAP™ mode and on-board MOSFETs provides fast transient response performance with ease of use, less external component count and small footprint. Externally adjustable switching frequency allows optimal design between component size and efficiency tradeoff. Ceramic output capacitors can be employed by adding a few extra components.
D-CAP™ mode with fast transient response
Internal soft-start control
Integrated boost diode
Power good signal
Adjustable overcurrent limit via external resistor
OVP/UVP/UVLO protection
Integrated selectable output discharge
Prebias output voltage start-up with disabled output discharge
Thermal shutdown
Supports all ceramic output capacitors
<5µA Shutdown current
<1% Initial reference accuracy
Green product and no Sb/Br

expand all
