TPS54227DDA - TI

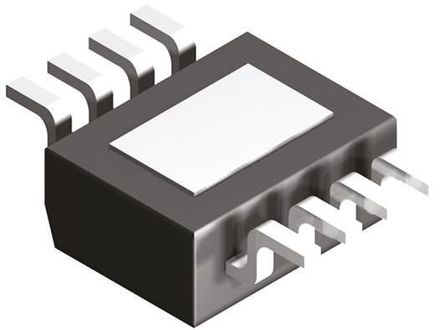

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS54227DDA
Manufacturer

TI
ChipWorker Part#

CW14496946
Category

DC to DC Converter
Package

SOIC-8
Description

Conv DC-DC 4.5V to 18V Step Down Single-Out 0.76V to 7V 2A 8Pin HSOP EP Tube
Documentation

Datasheet

TPS54227DDA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS54227DDA Specifications

Attribute	Attribute Value

Part Number	TPS54227DDA
Manufacturer	TI
ChipWorker Part#	CW14496946
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Outputs	1 Output
Output Voltage	0.76V ~ 7V
Output Current	2 A
Number of Positions	8 Position
Quiescent Current	800 µA
Number of Regulated Outputs	1 Output
Switching Frequency	700 kHz
Topology	Buck
Input Voltage (Max)	18 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	7 V
Output Voltage (Min)	760 mV
Output Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 18V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The TPS54227DDA is an adaptive on-time D-CAP2™ mode synchronous Buck Converter for use with networking home terminals. The TPS54227 enables system designers to complete the bus regulator for a suite of various end equipment with low component count and low standby current solution. The main control loop for the TPS54227 uses the D-CAP2™ mode control which provides a fast transient response with no external compensation components. The TPS54227 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP and ultra-low ESR ceramic capacitors. The device operates from 4.5 to 18V VIN input. The output voltage can be programmed between 0.76 and 7V. The device also features an adjustable soft-start time.
D-CAP2™ mode enables fast transient response
Low output ripple and allows ceramic output capacitor
Highly-efficient integrated FETs optimized for lower duty cycle applications
High initial bandgap reference accuracy
Adjustable soft-start
pre-biased soft-start
Cycle-by-cycle overcurrent limit
High efficiency, less than 10µA at shutdown
Green product and no Sb/Br
