TPS54350PWPR - TI

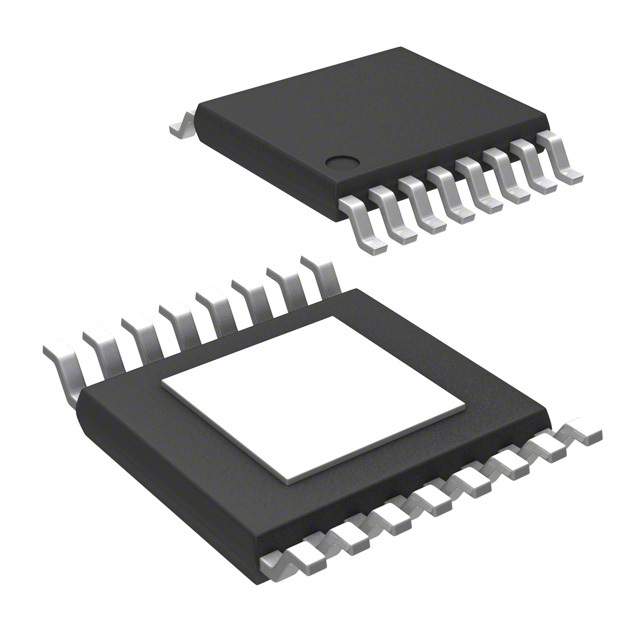

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS54350PWPR
Manufacturer

TI
ChipWorker Part#

CW5076900
Category

DC to DC Converter
Package

HTSSOP-16
Description

Step-Down Regulator 4.5 to 20V, 3A Synchronous Step Down SWIFT Converter Conv DC-DC Single Step Down 4.5V to 20V 16Pin HTSSOP EP T/R
Documentation

Datasheet

TPS54350PWPR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS54350PWPR Specifications

Attribute	Attribute Value

Part Number	TPS54350PWPR
Manufacturer	TI
ChipWorker Part#	CW5076900
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Number of Outputs	1 Output
Output Voltage	0.9V ~ 12V
Output Current	3 A
Number of Positions	16 Position
Quiescent Current	5.00 mA
Number of Regulated Outputs	1 Output
Switching Frequency	250kHz, 500kHz
Thermal Shutdown	Yes
Input Voltage (Max)	20 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	17.2 V
Output Voltage (Min)	0.891 V
Output Current (Max)	3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5 V
Input Voltage	4.5V ~ 20V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

Buck Switching Regulator IC Positive Adjustable 0.891V 1 Output 3A 16-PowerTSSOP (0.173", 4.40mm Width)
