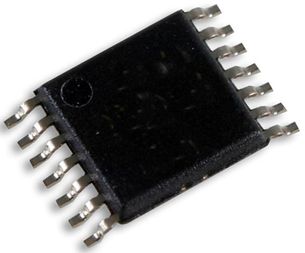

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS54425PWPR
Manufacturer

TI
ChipWorker Part#

CW36840593
Category

DC to DC Converter
Package

HTSSOP-14
Description

Step-Down Regulator 4.5V to 18V Input, 4A Synchronous Step Down SWIFT Converter with D-CAP2 Mode Conv DC-DC 4.5V to 18V Step Down Single-Out 0.76V to 5.5V 4A 14Pin HTSSOP EP T/R
Documentation

Datasheet

TPS54425PWPR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS54425PWPR Specifications

Attribute	Attribute Value

Part Number	TPS54425PWPR
Manufacturer	TI
ChipWorker Part#	CW36840593
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Number of Outputs	1 Output
Output Voltage	0.76V ~ 5.5V
Output Current	4 A
Number of Positions	14 Position
Quiescent Current	850 µA
Number of Regulated Outputs	1 Output
Switching Frequency	700 kHz
Topology	Buck
Input Voltage (Max)	18 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	0.76 V
Output Current (Max)	4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 18V
Input Voltage	4.5V ~ 18V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

The TPS54425 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54425 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54425 uses the D-CAP2 mode control which provides a very fast transient response with no external compensation components. The TPS54425 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V VIN input. The output voltage can be programmed between 0.76 V and 5.5 V. The device also features an adjustable soft start time and a power good function. The TPS54425 is available in the 14-pin HTSSOP package, and designed to operate from –40°C to 85°C.
