TPS544C25RVFR - TI

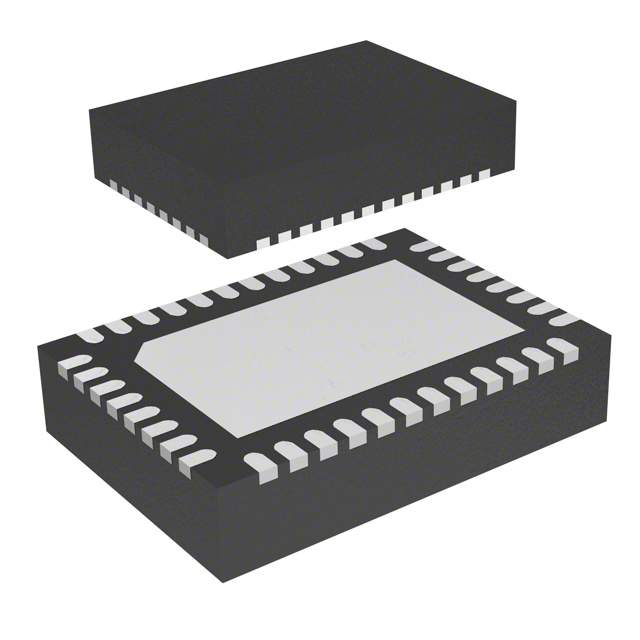

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS544C25RVFR
Manufacturer

TI
ChipWorker Part#

CW149007210
Category

DC to DC Converter
Package

LQFN-40
Description

4.5V to 18V, 30A Voltage Mode PMBus™ SWIFT™ Step-Down DC-DC Converter with FSYNC 40-LQFN-CLIP -40℃ to 125℃
Documentation

Datasheet

TPS544C25RVFR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS544C25RVFR Specifications

Attribute	Attribute Value

Part Number	TPS544C25RVFR
Manufacturer	TI
ChipWorker Part#	CW149007210
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	LQFN-40
Number of Outputs	1 Output
Output Voltage	0.5V ~ 5.5V
Output Current	30 A
Quiescent Current	7.70 mA
Number of Regulated Outputs	1 Output
Switching Frequency	200kHz ~ 1MHz
Topology	Buck
Input Voltage (Max)	18 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	0.5 V
Output Current (Max)	20 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	18 V
	expand all
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 30A 40-PowerLFQFN
