TPS54560QDDARQ1 - TI

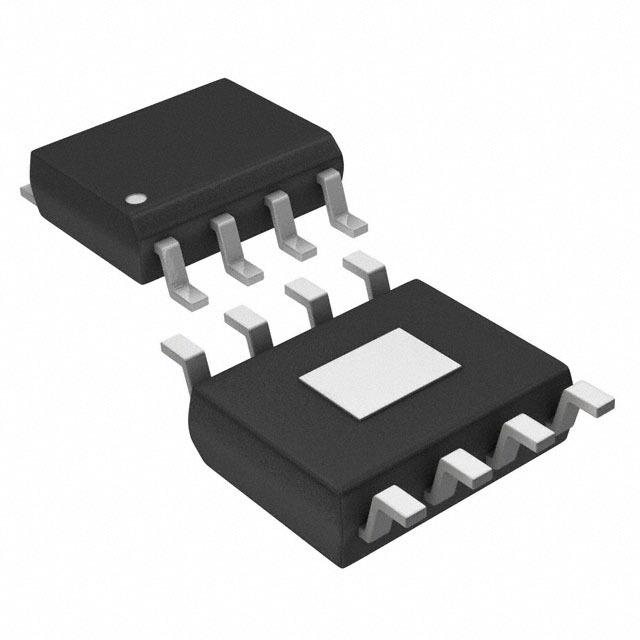

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS54560QDDARQ1
Manufacturer

TI
ChipWorker Part#

CW11061100
Category

DC to DC Converter
Package

HSOP-8
Description

Conv DC-DC 4.5V to 60V Step Down Single-Out 0.8V to 58.8V 5A Automotive 8Pin HSOP EP T/R
Documentation

Datasheet

TPS54560QDDARQ1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS54560QDDARQ1 Specifications

Attribute	Attribute Value

Part Number	TPS54560QDDARQ1
Manufacturer	TI
ChipWorker Part#	CW11061100
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	HSOP-8
Number of Outputs	1 Output
Output Voltage	0.8V ~ 58.8V
Output Current	5 A
Quiescent Current	146 µA
Number of Regulated Outputs	1 Output
Switching Frequency	100kHz ~ 2.5MHz
Input Voltage (Max)	60 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	58.8 V
Output Voltage (Min)	0.8 V
Output Current (Max)	5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	60 V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The TPS54560-Q1 is a 60-V, 5-A, step-down regulator with an integrated high side MOSFET. The device survives load dump pulses up to 65 V per ISO 7637. Current mode control provides simple external compensation and flexible component selection. A low-ripple, pulse-skip mode reduces the no load supply current to 146 µA. Shutdown supply current is reduced to 2 µA when the enable pin is pulled low.
Undervoltage lockout is internally set at 4.3 V but can be increased using an external resistor divider at the enable pin. The output voltage start-up ramp is internally controlled to provide a controlled start-up and eliminate overshoot.
A wide adjustable frequency range allows either efficiency or external component size to be optimized. Output current is limited cycle-by-cycle. Frequency foldback and thermal shutdown protects internal and external components during an overload condition.
The TPS54560-Q1 is available in an 8-pin thermally enhanced HSOIC PowerPAD package.
