TPS62260DDCTG4 - TI

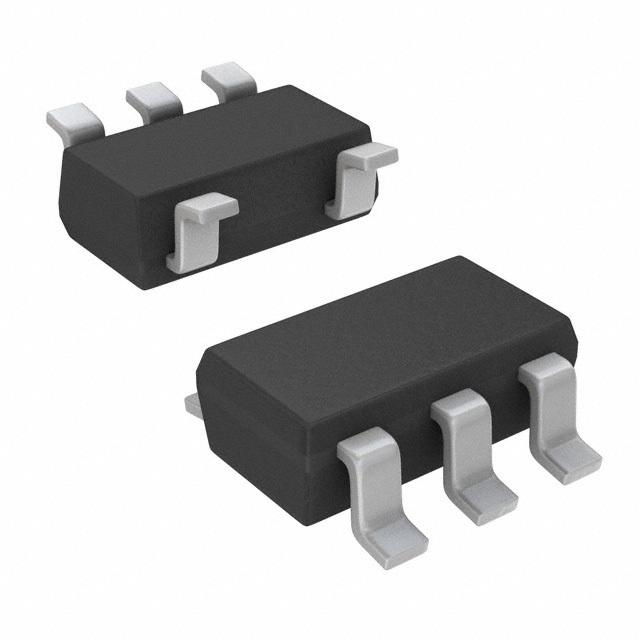

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS62260DDCTG4
Manufacturer

TI
ChipWorker Part#

CW33789872
Category

DC to DC Converter
Package

SOT-23-5
Description

Conv DC-DC 2.3V to 6V Synchronous Step Down Single-Out 0.6V to 6V 0.6A 5Pin TSOT-23 T/R
Documentation

Datasheet

TPS62260DDCTG4 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS62260DDCTG4 Specifications

Attribute	Attribute Value

Part Number	TPS62260DDCTG4
Manufacturer	TI
ChipWorker Part#	CW33789872
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Frequency	2.25 MHz
Number of Outputs	1 Output
Output Voltage	0.6V ~ 6V
Output Current	600 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Quiescent Current	15.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2.25 MHz
Topology	Buck
Input Voltage (Max)	6 V
Input Voltage (Min)	2 V
Output Voltage (Max)	6 V
Output Voltage (Min)	600 mV
Output Current (Max)	0.6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	40 ℃
Input Voltage	2V ~ 6V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The TPS62260DDCTG4 is a 2.25MHz Step-down Converter that provides up to 600mA output current from a single Li-ion cell and is ideal for battery-powered applications such as mobile phones and other portable equipment. With a wide input voltage range of 2 to 6V, the device also supports two- and three-cell alkaline batteries, 3.3 and 5V input voltage rails. The TPS62260 operates at 2.25MHz fixed-switching frequency and enters power save mode operation at light load currents to maintain high efficiency over the entire load current range. The power save mode is optimized for low-output voltage ripple. For low noise applications, the device can be forced into fixed frequency pulse-width modulation (PWM) mode by pulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than 1µA. It allows the use of small inductors and capacitors to achieve a small solution size.
High efficiency step-down converter
Power save mode at light load currents
Output voltage accuracy in PWM mode ±1.5%
15µA Typical quiescent current
100% Duty cycle for lowest dropout
Voltage positioning at light loads
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

expand all
