TPS62730DRYT - TI

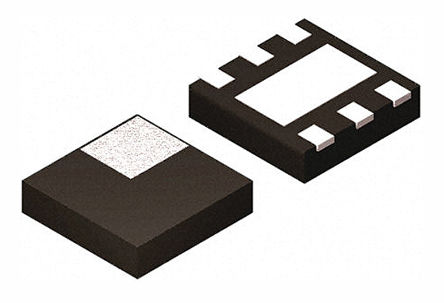

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS62730DRYT
Manufacturer

TI
ChipWorker Part#

CW18129800
Category

Voltage Regulator
Package

SON-6
Description

Conv DC-DC 1.9V to 3.9V Step Down Single-Out 2.1V 0.1A 6Pin USON T/R
Documentation

Datasheet

TPS62730DRYT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS62730DRYT Specifications

Attribute	Attribute Value

Part Number	TPS62730DRYT
Manufacturer	TI
ChipWorker Part#	CW18129800
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SON-6
Number of Outputs	1 Output
Output Voltage	2.1 V
Output Current	100 mA
Number of Positions	6 Position
Quiescent Current	25.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	3 MHz
Topology	Buck
Input Voltage (Max)	3.9 V
Input Voltage (Min)	1.9 V
Output Voltage (Max)	2.1 V
Output Current (Max)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.9 V
Input Voltage	1.9V ~ 3.9V
	expand all
Size-Length	1.5 mm
Size-Width	1.05 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The TPS62730DRYT is a Step-down Converter with bypass mode for ultra low power wireless applications. The device is optimized to supply low-power wireless sub 1 and 2.4GHz RF transceivers and System-On-Chip (SoC) solutions. The TPS62730 reduces the current consumption drawn from the battery during TX and RX mode by a high efficient step-down voltage conversion. The device provides an output current of up to 100mA and allows the use of tiny and low-cost chip inductors and capacitors. With an input voltage range of 1.9 to 3.9V, the device supports Li-primary battery chemistries such as Li-SOCl2, Li-SO2, Li-MnO2 and also two cell alkaline batteries. It features an ultralow power bypass mode with typical 30nA current consumption to support sleep and low power modes of CC2540 Bluetooth Low Energy and CC430 SoC solutions. In this bypass mode, the output capacitor of the DC-DC converter is connected through an integrated typical 2.1R bypass switch to the battery.
Typical 30nA ultra low-power bypass mode
25µA Typical DC-DC quiescent current
Internal feedback divider disconnect
Typical 2.1R bypass switch between VIN and VOUT
Automatic transition from DC-DC to bypass mode
Up to 95% DC-DC efficiency
Open-drain status output STAT
Output peak current up to 100mA
Fixed output voltages 1.9, 2.05, 2.1, 2.3V
2.2µH and 2.2µF Small external output filter components
Optimized for low output ripple voltage
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
