TPS62742DSSR - TI

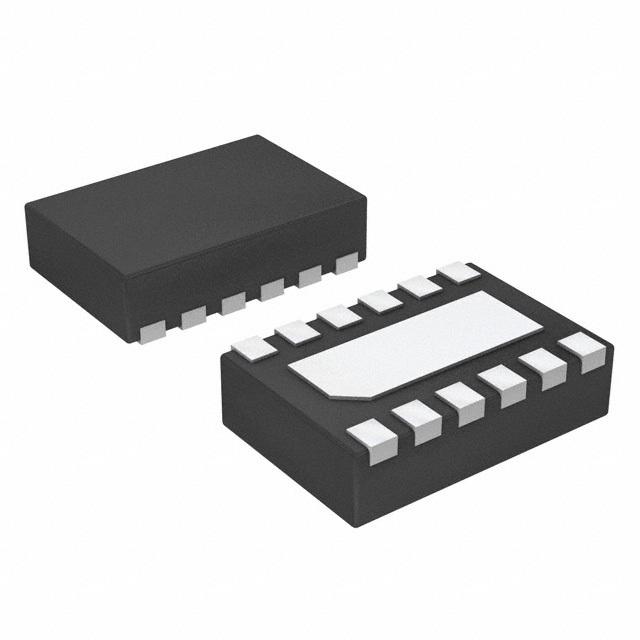

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS62742DSSR
Manufacturer

TI
ChipWorker Part#

CW32911088
Category

DC to DC Converter
Package

WFDFN-12
Description

Conv DC-DC 2.2V to 5.5V Step Down Single-Out 1.8V to 3.3V 0.4A 12Pin WSON EP T/R
Documentation

Datasheet

TPS62742DSSR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS62742DSSR Specifications

Attribute	Attribute Value

Part Number	TPS62742DSSR
Manufacturer	TI
ChipWorker Part#	CW32911088
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	WFDFN-12
Number of Outputs	1 Output
Output Voltage	1.8V ~ 3.3V
Output Current	0.4 A
Quiescent Current	300 nA
Number of Regulated Outputs	1 Output
Switching Frequency	2000 kHz
Topology	Buck
Switching Current	0.65 A
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.2 V
Output Current (Max)	0.4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.2V ~ 5.5V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The TPS6274x is industrys first step down converter featuring typ. 360nA quiescent current and operating with a tiny 2.2µH inductor and 10µF output capacitor. This new DCS-Control™ based device extends the light load efficiency range below 10µA load currents. TPS62740 supports output currents up to 300mA, TPS62742 up to 400mA. The device operates from rechargeable Li-Ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-MnO2 and two or three cell alkaline batteries. The input voltage range up to 5.5V allows also operation from a USB port and thin-film solar modules. The output voltage is user selectable by four VSEL pins within a range from 1.8V to 3.3V in 100mV steps. TPS6274x features low output ripple voltage and low noise with a small output capacitor. Once the battery voltage comes close to the output voltage (close to 100% duty cycle) the device enters no ripple 100% mode operation to prevent an increase of output ripple voltage. The device then stops switching and the output is connected to the input voltage. The integrated slew rate controlled load switch provides typ. 0.6Ω on-resistance and can distribute the selected output voltage to a temporarily used sub-system. The TPS6274x is available in a small 12 pin 2 × 3mm2 WSON package and supports a total solutions size of 31mm2.
