TPS65217CRSLR - TI

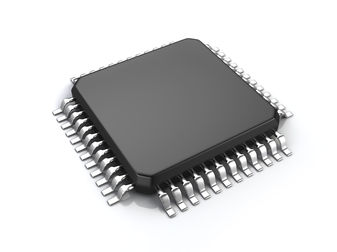

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS65217CRSLR
Manufacturer

TI
ChipWorker Part#

CW6228639
Category

Battery Management IC
Package

VQFN-48
Description

Battery Powered Systems 4.3V/2.75V to 5.8V/5.5V 48Pin VQFN EP T/R
Documentation

Datasheet

TPS65217CRSLR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS65217CRSLR Specifications

Attribute	Attribute Value

Part Number	TPS65217CRSLR
Manufacturer	TI
ChipWorker Part#	CW6228639
Category	Battery Management IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	VQFN-48
Supply Voltage (DC)	5.80 V
Number of Positions	48 Position
Number of Regulated Outputs	7 Output
Switching Frequency	2550 kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5.8 V
	expand all
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The TPS65217 is a single-chip power management IC specifically designed to support applications in portable and 5-V non-portable applications. It provides a linear battery charger for single-cell Li-ion and Li-Polymer batteries, dual-input power path, three step-down converters, four LDOs, and a high-efficiency boost converter to power two strings of up to 10 LEDs each. The system can be supplied by any combination of USB port, 5-V AC adaptor, or Li-Ion battery. The device is characterized across a 40°C to +105°C temperature range which makes it suitable for industrial applications. Three high-efficiency 2.25-MHz step-down converters can providing the core voltage, memory, and I/O voltage for a system.
These step-down converters enter a low power mode at light load for maximum efficiency across the widest possible range of load currents. For low-noise applications the devices can be forced into fixed frequency PWM using the I2C interface. The step-down converters allow the use of small inductors and capacitors to achieve a small solution size.
LDO1 and LDO2 can support system-standby mode. In SLEEP state output current is limited to 1 mA to reduce quiescent current whereas in normal operation they can support up to 100 mA each. LDO3 and LDO4 can be configured to support up to 4 00 mA each and can be configured as load switches instead of regulators. All four LDOs have a wide input voltage range that allows them to be supplied either from one of the DC-DC converters or directly from the system voltage node.
By default only LDO1 is always ON but any rail can be configured to remain up in SLEEP state. Especially the DC-DC converters can remain up in a low-power PFM mode to support system suspend mode.
The TPS65217 offers configurable power-up and power-down sequencing and several housekeeping functions such as power-good output, pushbutton monitor, hardware reset function and temperature sensor to protect the battery.
For details on specific applications please see our application note SLVU551.
The TPS65217 comes in a 48-pin leadless package (6-mm × 6-mm QFN) with a 0.4-mm pitch.
