TPS70933QDRVRQ1 - TI

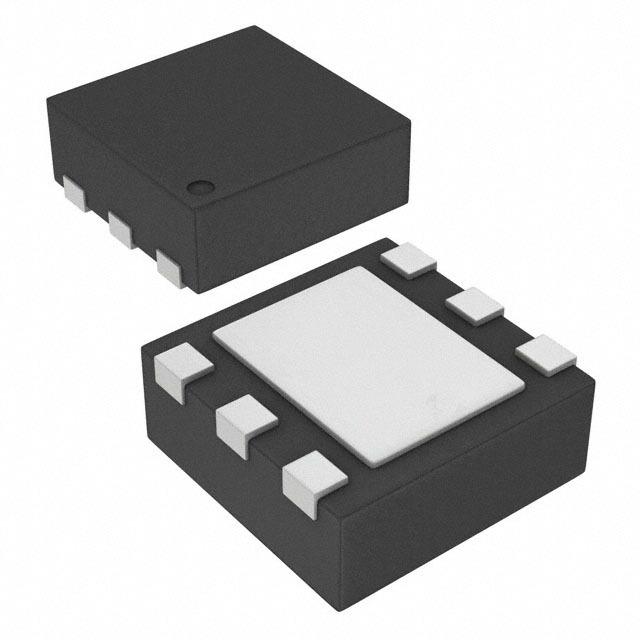

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS70933QDRVRQ1
Manufacturer

TI
ChipWorker Part#

CW113429043
Category

Voltage Regulator
Package

WDFN-6
Description

LDO Regulator Pos 3.3V 0.15A 6Pin WSON T/R
Documentation

Datasheet

TPS70933QDRVRQ1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

TPS70933QDRVRQ1 Specifications

Attribute	Attribute Value

Part Number	TPS70933QDRVRQ1
Manufacturer	TI
ChipWorker Part#	CW113429043
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	150 mA
Supply Current	2.05µA ~ 350µA
Quiescent Current	1.00 µA
Output Capacitor Type	Ceramic
voltage rating	0.975V @150mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	30 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	30 V
	expand all
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The TPS709-Q1 series of linear regulators are ultralow, quiescent current devices designed for power-sensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1 µA makes these devices ideal solutions for battery-powered, always-on systems that require very little idle-state power dissipation. These devices have thermal-shutdown, current-limit, and reverse-current protections for added safety.
These regulators can be put into shutdown mode by pulling the EN pin low. The shutdown current in this mode goes down to 150 nA, typical.
The TPS709-Q1 series is available in WSON-6 and SOT-23-5 packages.
