TPS73512QDRBRQ1 - TI

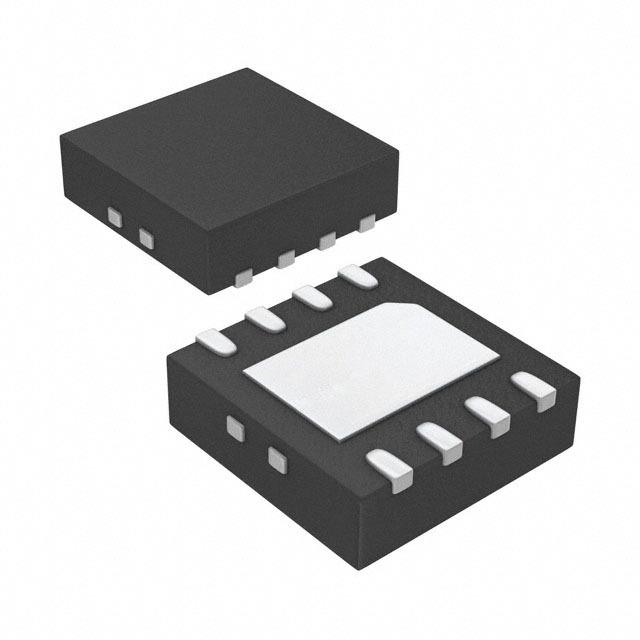

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS73512QDRBRQ1
Manufacturer

TI
ChipWorker Part#

CW15494110
Category

Voltage Regulator
Package

VDFN-8
Description

500mA, Low Quiescent Current, Low-Noise, High PSRR, Low-Dropout Linear Regulator for Automotive 8-SON -40℃ to 125℃
Documentation

Datasheet

TPS73512QDRBRQ1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS73512QDRBRQ1 Specifications

Attribute	Attribute Value

Part Number	TPS73512QDRBRQ1
Manufacturer	TI
ChipWorker Part#	CW15494110
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VDFN-8
Number of Outputs	1 Output
Output Voltage	1.2 V
Output Current	500 mA
Supply Current	65 µA
Quiescent Current	45.0 µA
Output Capacitor Type	Ceramic
voltage rating	0.28V @500mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±3 %
Input Voltage	6.5 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Description
The TPS735-Q1 family of low-dropout (LDO), low power linear regulators offers excellent ac performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient responses are provided while consuming a very low 46 μA (typical) ground current.
The TPS735-Q1 family of devices is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a typical dropout voltage of 280 mV at 500-mA output. The TPS735-Q1 family of devices uses a precision voltage reference and feedback loop to achieve overall accuracy of 2% (VOUT > 2.2 V) over all load, line, process, and temperature variations. This family of devices is fully specified from TA = –40°C to 125°C and is offered in a low-profile, 3-mm × 3-mm SON package.
Features
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to 125°C
Ambient Operating Temperature Range
– Device HBM ESD Classification Level 2
– Device CDM ESD Classification Level C4B
• Input Voltage: 2.7 V to 6.5 V
• 500-mA Low-Dropout Regulator with EN
• Low IQ: 46 μA
• Multiple Output Voltage Versions Available:
– Fixed Outputs of 1 V to 4.3 V
– Adjustable Outputs from 1.25 V to 6 V
• High PSRR: 68 dB at 1 kHz
• Low Noise: 13.2 μVRMS
• Fast Startup Time: 45 μs
• Stable with a Low-ESR, 2-μF Output Capacitor
• Excellent Load and Line Transient Response
• 2% Overall Accuracy (Load, Line, Temperature, VOUT > 2.2 V)
• Low Dropout: 280 mV at 500 mA
• 3-mm × 3-mm SON-8 Packages
Applications
• Automotive Infotainment
• Navigation Systems
• WiFi, WiMax Modules
• Telematics Systems
• Microprocessor Power

expand all
