TPS76330DBVR - TI

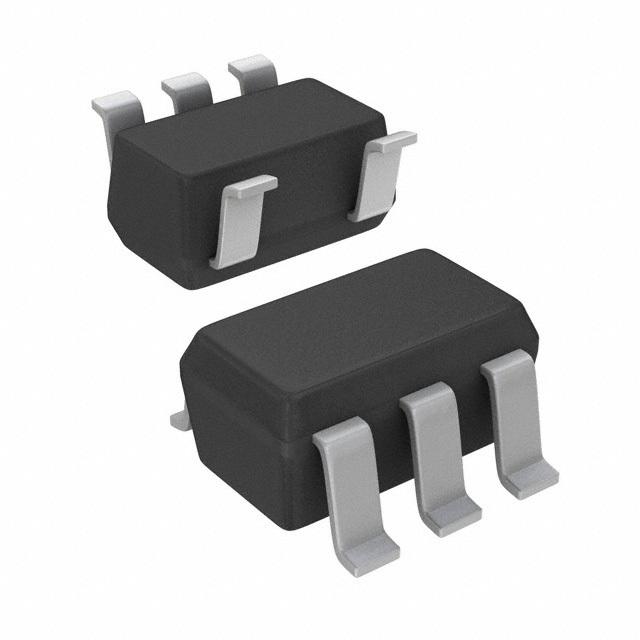

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS76330DBVR
Manufacturer

TI
ChipWorker Part#

CW13836163
Category

Voltage Regulator
Package

SOT-23-5
Description

Single Channel LDO Single Output LDO, 150mA, Fixed(3V), Low Quiescent Current, Thermal Protection LDO Regulator Pos 3V 0.15A 5Pin SOT-23 T/R
Documentation

Datasheet

TPS76330DBVR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS76330DBVR Specifications

Attribute	Attribute Value

Part Number	TPS76330DBVR
Manufacturer	TI
ChipWorker Part#	CW13836163
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Number of Outputs	1 Output
Input Voltage (DC)	10.0V (max)
Output Voltage	3 V
Output Current	150 mA
Power Dissipation	0.555 W
Quiescent Current	80.0 µA
Output Capacitor Type	Ceramic
voltage rating	0.3V @150mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	10 V
Input Voltage (Min)	2.7 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	555 mW
Accuracy	3 %
Input Voltage	≤10 V
	expand all
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

description
The TPS763xx family of low-dropout (LDO) voltage regulators offers the benefits of low-dropout voltage, low-power operation, and miniaturized packaging. These regulators feature low dropout voltages and quiescent currents compared to conventional LDO regulators. Offered in a 5-terminal, small outline integrated-circuit SOT-23 package, the TPS763xx series devices are ideal for cost-sensitive designs and for applications where board space is at a premium.
150-mA Low-Dropout Regulator
Output Voltage: 5 V, 3.8 V, 3.3 V, 3.0 V, 2.8 V, 2.7 V, 2.5 V, 1.8 V, 1.6 V and Variable
Dropout Voltage, Typically 300 mV at 150 mA
Thermal Protection
Over Current Limitation
Less Than 2-µA Quiescent Current in Shutdown Mode
−40°C to 125°C Operating Junction Temperature Range
5-Pin SOT-23 (DBV) Package
