TPS79101DBVREP - TI

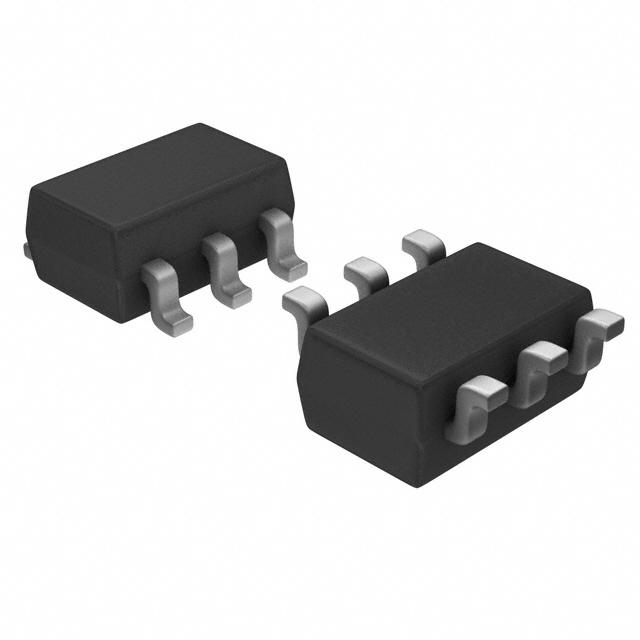

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS79101DBVREP
Manufacturer

TI
ChipWorker Part#

CW47009367
Category

Voltage Regulator
RoHS

Lead free / RoHS Compliant
Description

LDO Regulator Pos 1.2V to 5.5V 0.1A 6Pin SOT-23 T/R
Documentation

Datasheet

TPS79101DBVREP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS79101DBVREP Specifications

Attribute	Attribute Value

Part Number	TPS79101DBVREP
Manufacturer	TI
ChipWorker Part#	CW47009367
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Number of Outputs	1 Output
Output Voltage	1.2V ~ 5.5V
Output Current	100 mA
Supply Current	250 µA
Power Dissipation	561 mW
Quiescent Current	170 µA
Output Capacitor Type	Ceramic
voltage rating	38.0 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	561 mW
Accuracy	±2 %
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The TPS791xx family of low-dropout (LDO) low-power linear voltage regulators features high power supply rejection ratio (PSRR), ultralow noise, fast start-up, and excellent line and load transient responses in a small outline, SOT23, package. Each device in the family is stable, with a small 1-µF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (e.g., 38 mV at 100 mA, TPS79147). Each device achieves fast start-up times (approximately 63 µs with a 0.001-µF bypass capacitor) while consuming very low quiescent current (170 µA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 µA. The TPS79118 exhibits approximately 15 µVRMS of output voltage noise with a 0.1-µF bypass capacitor. Applications with analog components that are noise sensitive, such as portable RF electronics, benefit from the high-PSRR and low-noise features as well as the fast response time.
