TPS7A7001DDAR - TI

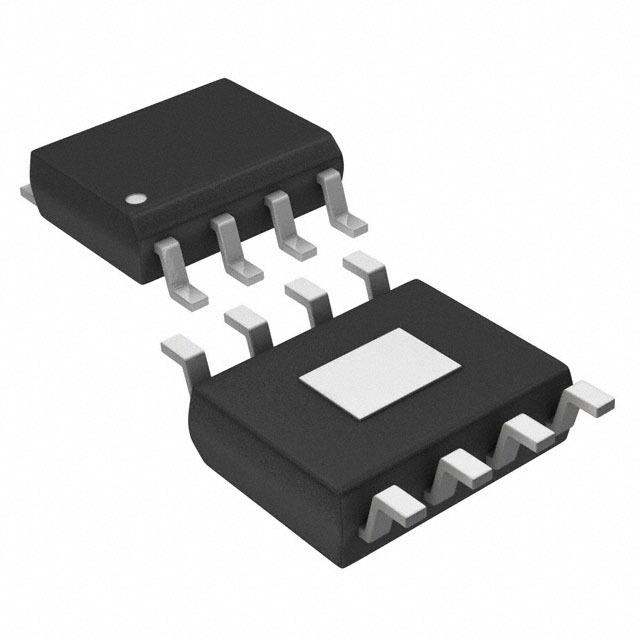

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS7A7001DDAR
Manufacturer

TI
ChipWorker Part#

CW949608
Category

Voltage Regulator
Package

HSOP-8
Description

TEXAS INSTRUMENTS TPS7A7001DDAR LDO Voltage Regulator, Adjustable, 1.425V to 6.5V input, 380mV drop., 0.5V to 5V/2A out, SOIC-8
Documentation

Datasheet

TPS7A7001DDAR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS7A7001DDAR Specifications

Attribute	Attribute Value

Part Number	TPS7A7001DDAR
Manufacturer	TI
ChipWorker Part#	CW949608
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	HSOP-8
Number of Outputs	1 Output
Output Voltage	0.9V ~ 5V
Output Current	2 A
Supply Current	3 mA
Number of Positions	8 Position
Quiescent Current	3.00 mA
Output Capacitor Type	Ceramic
voltage rating	380 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6.5 V
Input Voltage (Min)	1.425 V
Output Voltage (Max)	5 V
Output Voltage (Min)	500 mV
Output Current (Max)	2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±3 %
Input Voltage	1.425V ~ 6.5V
	expand all
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

The TPS7A7001DDAR is a very low input, very low dropout, 2A regulator with enable in 8 pin SOIC package. It is a high performance, positive voltage, low dropout (LDO) regulator designed for applications requiring very low input voltage and very low dropout voltage at up to 2A. The device operates with a single input voltage as low as 1.425V and with an output voltage programmable to as low as 0.5V. The output voltage can be set with an external resister divider. It features ultra-low dropout, ideal for applications where VOUT is very close to VIN. It has an enable pin for further reduced power dissipation while in shutdown mode. It provides excellent regulation over variations in line, load and temperature. It is used in telecom and networking cards, motherboards and peripheral cards, wireless infrastructure, set-top boxes, notebook computers and battery-powered systems.
Input voltage as low as 1.425V
Maximum dropout of 380mA at 2A
Adjustable output from 0.5V
Current limit and thermal shutdown protections
Enable pin
1µA quiescent current in shutdown mode
Operating temperature range from -40°C to 125°C
Maximum line regulation of 0.4%/V at IOUT = 10mA
Maximum load regulation of 0.75%/A at 10mA
ESD sensitive device, take proper precaution while handling the device.
