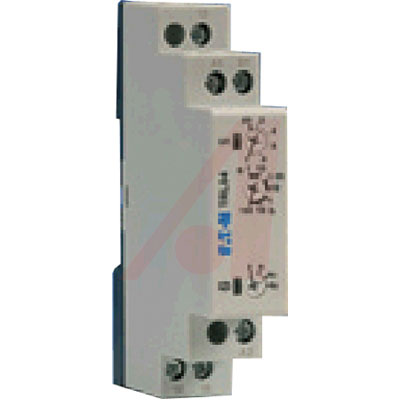

TRL27 ,Timer - Eaton Bussmann

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

21 points

Part No

TRL27
Manufacturer

Eaton Bussmann
ChipWorker Part#

CW288761972
Category

Timer
Description

EATON CUTLER HAMMER TRL27 Analog Timer, TR Series, Programmable Reset, 0.05 s, 100H, 7 Ranges, 2 Changeover Relays
Documentation

Datasheet
Ships from

Moscow
Наличие

1 pcs In Stock
Estimated Price

$ 87.61

Buy TRL27

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TRL27 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TRL27 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TRL27
Manufacturer	Eaton Bussmann
ChipWorker Part#	CW288761972
Category	Timer
Documentation	Datasheet
Mounting Style	DIN Rail
Current Rating	8 A
Power Rating	2 kW
Voltage Rating	250 V
Supply Voltage (Max)	240 VAC
	expand all
RoHS	RoHS Compliant
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

**Eaton"s type TR range of time relays comprises 3 models offering 9 different functions to meet the varied time control needs required for controlling such applications as fans, pumps and lighting. **
By having a flexible supply and control voltage input the time relays can be easily applied without the need of additional power supplies. The status of supply voltage, time sequence and output relay is visible on the front by LED indicators. All rotary adjustment buttons are located on the front. The recessed position of the buttons prevents from unintentional adjustment. All models are of a compact design, 18 mm wide. Staggered terminals allow easy access to the lower level terminals even if upper terminals are wired.
**Technical characteristics**
* Designed in Accordance with IEC 61812-1, IEC 61000-6-2 and EN 50178
* Time Adjustment from 50 Milliseconds up to 100 Hours
* Outgoing Change-Over Contact Rated 8 A/250 V
* Flexible Voltage Supply and Control Input
**Features**
* 3 Models Offering 9 Different Functions
* Staggered Terminals Allow Easy Access
* LED Status Indicators on Front
* High Level of Accuracy
* Variable Supply and Control Voltage Offers Flexible Applications
* Overvoltage Protection Class III Available on All Types
* Compact 18 mm Wide DIN Rail Modular Design for All Functions
* Recessed Adjustment Buttons Avoid Unintentional Adjustment
**Timing Functions**
* E — ON Delay (Voltage Controlled)
* R — OFF Delay (with Control Input)
* Ws — Single Shot Leading Edge (with Control Input)
* Wa — Single Shot Trailing Edge (with Control Input)
* Es — ON Delay (with Control Input)
* Wu — Single Shot Leading Edge (Voltage Controlled)
* Bp — Symmetric Pulse Generator (Pause First)
* Ip — Asymmetric Pulse Generator (Pause First)
* Li — Asymmetric Pulse Generator (Pulse First)
