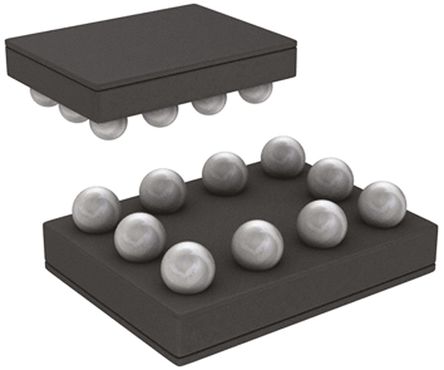

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoTS3A24159YZPR
-
ManufacturerTI
-
ChipWorker Part#CW18960100
-
CategoryAnalog Switch Ic, Analog Switch Multiplexer
-
PackageDSBGA-10
-
DescriptionTEXAS INSTRUMENTS TS3A24159YZPR Analogue Switch, Dual Channel, SPDT, 2Channels, 0.3Ω, 1.65V to 3.6V, DSBGA, 10Pins
-
DocumentationDatasheet
