TS4871IST - ST Microelectronics

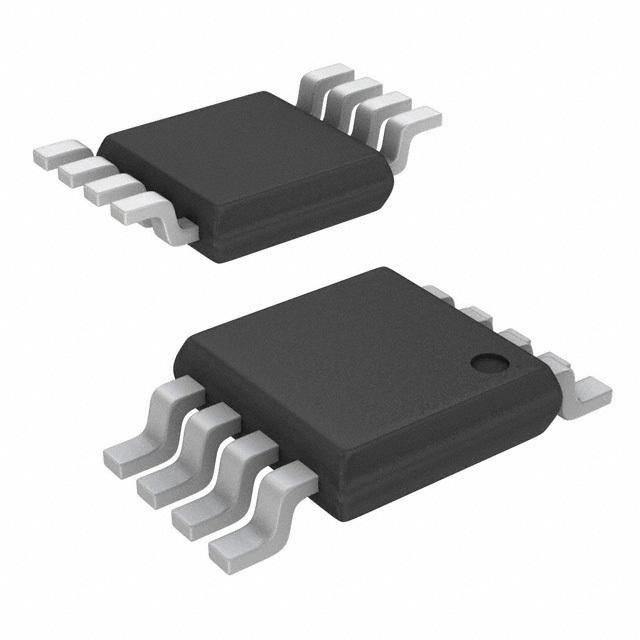

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoTS4871IST
-
ManufacturerST Microelectronics
-
ChipWorker Part#CW13258393
-
CategoryAudio Amplifier IC
-
PackageTSSOP-8
-
DescriptionAudio Amp Speaker 1CH Mono 1W Class-AB 8Pin MSOP T/R
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
TS4871IST Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
TS4871IST Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | TS4871IST |
| Manufacturer | ST Microelectronics |
| ChipWorker Part# | CW13258393 |
| Category | Audio Amplifier IC |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Input Voltage (DC) | 1.20 V |
| Supply Current | 8 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Quiescent Current | 6.00 mA |
| Gain Bandwidth Product | 2 MHz |
| Output Power | 1 W |
| Gain | 20 dB |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.5 V |
| expand all | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.86 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
Product Description
- DESCRIPTION
- The TS4871 is an Audio Power Amplifier capable of delivering 1W of continuous RMS Ouput Power into 8Ω load @ 5V.
- This Audio Amplifier is exhibiting 0.1% distortion level (THD) from a 5V supply for a Pout = 250mW RMS. An external standby mode control reduces the supply current to less than 10nA. An internal thermal shutdown protection is also provided.
- The TS4871 has been designed for high quality audio applications such as mobile phones and to minimize the number of external components.
- The unity-gain stable amplifier can be configured by external gain setting resistors.
- ■ OPERATING FROM VCC = 2.5V to 5.5V
- ■ 1W RAIL TO RAIL OUTPUT POWER @ Vcc=5V, THD=1%, f=1kHz, with 8Ω Load
- ■ ULTRA LOW CONSUMPTION IN STANDBY MODE (10nA)
- ■ 75dB PSRR @ 217Hz from 5V to 2.6V
- ■ ULTRA LOW POP & CLICK
- ■ ULTRA LOW DISTORTION (0.1%)
- ■ UNITY GAIN STABLE
- ■ AVAILABLE IN SO8, MiniSO8 & DFN8 3x3mm
- APPLICATIONS
- ■ Mobile Phones (Cellular / Cordless)
- ■ Laptop / Notebook Computers
- ■ PDAs
- ■ Portable Audio Devices
