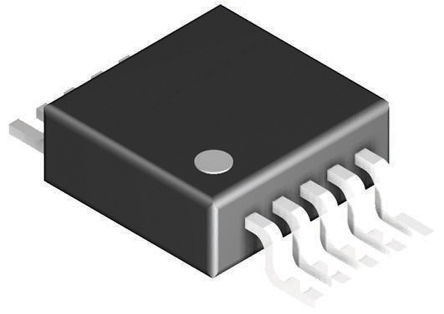

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoTS5A22362DGSR
-
ManufacturerTI
-
ChipWorker Part#CW4501337
-
CategoryAnalog Switch Ic, Analog Switch Multiplexer
-
PackageVSSOP-10
-
DescriptionTEXAS INSTRUMENTS TS5A22362DGSR Analog Switch, Dual Channel, SPDT, 2Channels, 0.94Ω, 2.3V to 5.5V, MSOP, 10Pins
-
DocumentationDatasheet
