TS5A3159ADCKT - TI

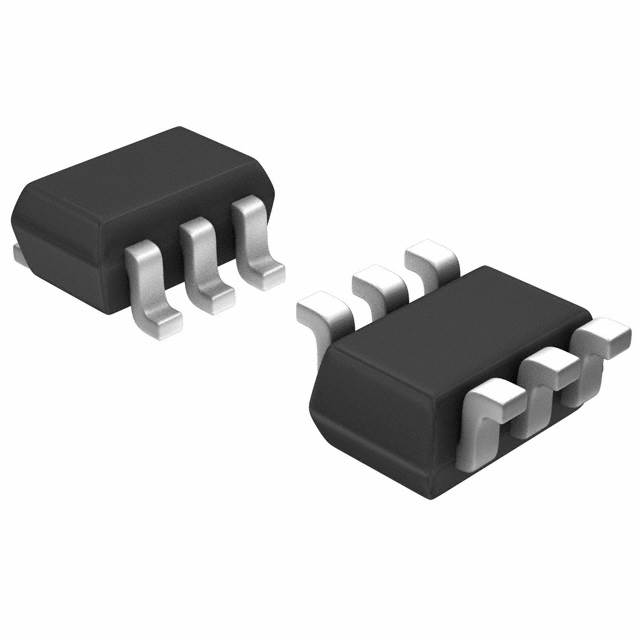

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TS5A3159ADCKT
Manufacturer

TI
ChipWorker Part#

CW6422332
Category

Interface IC, Interface Controller
Package

SC-70-6
Description

TEXAS INSTRUMENTS TS5A3159ADCKT Analog Switch, SPDT, 1Channels, 1Ω, 1.65V to 5.5V, SC-70, 6Pins
Documentation

Datasheet

TS5A3159ADCKT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TS5A3159ADCKT Specifications

Attribute	Attribute Value

Part Number	TS5A3159ADCKT
Manufacturer	TI
ChipWorker Part#	CW6422332
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Supply Voltage (DC)	1.65V ~ 5.50V
Number of Outputs	2 Output
Supply Current	100 nA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Voltage Nodes	1.80 V, 2.50 V, 3.00 V, 3.30 V, 5.00 V
Bandwidth	100 MHz
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	100 MHz
Supply Voltage	1.65V ~ 5.5V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

1 Circuit IC Switch 2:1 900mOhm SC-70-6
