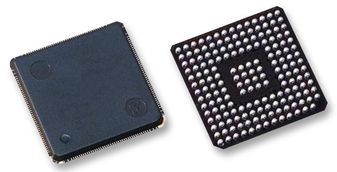

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TUSB1310ZAY
Manufacturer

TI
ChipWorker Part#

CW86521358
Category

Interface IC, Interface Controller
Package

NFBGA-175
Description

USB Interface, Universal Transceiver, USB 3.0, 1.045V, 1.155V, BGA, 175Pins
Documentation

Datasheet

TUSB1310ZAY Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TUSB1310ZAY Specifications

Attribute	Attribute Value

Part Number	TUSB1310ZAY
Manufacturer	TI
ChipWorker Part#	CW86521358
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	175 Pin
Case/Package	NFBGA-175
Supply Voltage (DC)	1.04V (min)
Number of Positions	175 Position
Data Rate	5.00 Gbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.1 V, 1.8 V, 3.3 V
Supply Voltage (Max)	1.155 V
Supply Voltage (Min)	1.045 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2018/01/15
ECCN Code	EAR99

Product Description

Introduction
The TUSB1310 is a single port, 5.0-Gbps USB 3.0 physical layer transceiver operating off of a single crystal or an external reference clock. The reference clock frequencies are selectable from 20, 25, 30, and 40 MHz. The TUSB1310 provides a clock to USB link layer controllers. The single reference clock allows the TUSB1310 to provide a cost effective USB 3.0 solution with few external components and a minimum implementation cost.
Features
• Universal Serial Bus (USB)
– Single Port 5.0-Gbps USB 3.0 Physical Layer Transceiver
• One 5.0-Gbps SuperSpeed Conneciton
• One 480-Mbps HS/FS/LS Connection
– Fully Compliant with USB 3.0 Specification
– Supports 3+ Meters USB 3.0 Cable Length
– Fully Adaptive Equalizer to Optimize Receiver Sensitivity
– PIPE to Link Layer Controller
• Supports 16-Bit SDR Mode at 250 MHz
• Compliant With PHY Interface for the USB Architectures (PIPE), Version 3.0
– ULPI to Link Layer Controller
• Supports 8-Bit SDR Mode at 60 MHz
• Supports Synchronous Mode and Low Power Mode
• Compliant with UTMI+ Low Pin Interface (ULPI) Specification, Revision 1.1
• General Features
– IEEE 1149.1 JTAG Support
– IEEE 1149.6 JTAG support for the SuperSpeed Port
– Operates on a Single Reference Clock Selectable from 20, 25, 30 or 40 MHz
– 3.3-, 1.8-, and 1.1-V Supply Voltages
– 1.8-V PIPE and ULPI I/O
– Available in Lead-Free 175-Ball 12- x 12-nF BGA Package (175ZAY)
Applications
• Surveillance Cameras
• Multimedia Handset
• Smartphone
• Digital Still Camera
• Portable Media Player
• Personal Navigation Device
• Audio Dock
• Video IP Phone
• Wireless IP Phone
• Software Defined Radio
