UCC27200DDA - TI

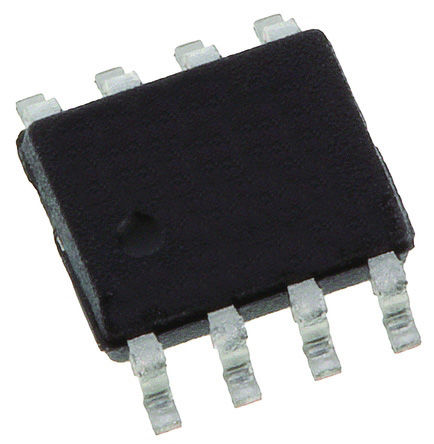

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

UCC27200DDA
Manufacturer

TI
ChipWorker Part#

CW40387068
Category

FET Driver
Package

SOIC-8
Description

MOSFET DRVR 3A 2Out Hi/Lo Side Full Brdg/Half Brdg Non-Inv 8Pin HSOP EP Tube
Documentation

Datasheet

UCC27200DDA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

UCC27200DDA Specifications

Attribute	Attribute Value

Part Number	UCC27200DDA
Manufacturer	TI
ChipWorker Part#	CW40387068
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	1 MHz
Supply Voltage (DC)	8.00V (min)
Rise/Fall Time	8ns, 7ns
Number of Outputs	2 Output
Output Current	3 A
Supply Current	4 mA
Number of Positions	8 Position
Power Dissipation	2.7 W
Rise Time	8 ns
Fall Time	7 ns
Fall Time (Max)	7 ns
Fall Time (Max)	8 ns
Operating Temperature (Max)	140 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2700 mW
Supply Voltage	8V ~ 17V
Supply Voltage (Max)	17 V
Supply Voltage (Min)	8 V
	expand all
Size-Length	4.89 mm
Size-Width	3.9 mm
Size-Height	1.48 mm
Operating Temperature	-40℃ ~ 140℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The UCC27200DDA is a high-frequency N-channel MOSFET Driver includes a 120V bootstrap diode and high-side and low-side drivers with independent inputs for maximum control flexibility. This allows for N-channel MOSFET control in half-bridge, full-bridge, two-switch forward and active clamp forward converters. The low-side and the high-side gate driver is independently controlled and matched to 1ns between the turn-ON and turnoff of each other. An on-chip bootstrap diode eliminates the external discrete diodes. Under-voltage lockout is provided for both the high-side and the low-side drivers forcing the outputs low if the drive voltage is below the specified threshold.
Drives two N-channel MOSFETs in high-side and low-side configuration
Negative voltage handling on HS (-5V)
Greater than 1MHz of operation
Under-voltage lockout for high-side and low-side driver
On-chip 0.65V VF, 0.6R RD bootstrap diode
120V Maximum boot voltage
20V Maximum VDD voltage
8ns Rise and 7ns fall time with 1000pF load
1ns Delay matching
Green product and no Sb/Br
