UCC3810N - TI

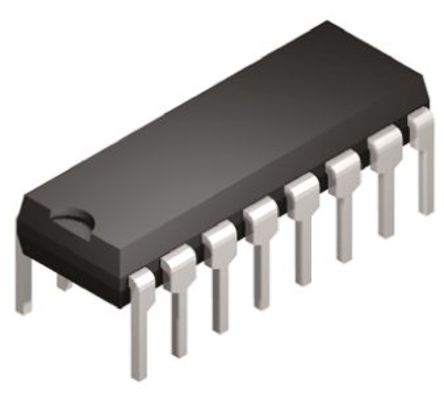

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

UCC3810N
Manufacturer

TI
ChipWorker Part#

CW44912986
Category

Power Management IC
Package

PDIP-16
Description

Current Mode PWM Controller 1A 1000kHz 16Pin PDIP Tube
Documentation

Datasheet

UCC3810N Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

UCC3810N Specifications

Attribute	Attribute Value

Part Number	UCC3810N
Manufacturer	TI
ChipWorker Part#	CW44912986
Category	Power Management IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Frequency	1.00 MHz
Supply Voltage (DC)	10.0V (max)
Number of Outputs	2 Output
Output Voltage	1.20 V
Output Current	1 A
Supply Current	14.5 mA
Number of Regulated Outputs	2 Output
Rise Time	20 ns
Switching Frequency	1 MHz
Topology	Buck, Boost, Flyback, Forward
Duty Cycle	50 %
Maximum Duty Cycle	50 %
Fall Time	30 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	9.5V ~ 10V
	expand all
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

**DESCRIPTION**
The UCC3810 is a high-speed BiCMOS controller integrating two synchronized pulse width modulators for use in off-line and dc-to-dc power supplies. The UCC3810 family provides perfect synchronization between two PWMs by usin g the same oscillator. The oscillator’s sawtooth waveform can be used for slope compensation if required. Using a toggle flip-flop to alternate between modulators, the UCC3810 ensures that one PWM does not slave, interfere, or otherwise affect the other PWM. This toggle flip- flop also ensures that each PWM is limited to 50% maximum duty cycle, insuring adequate off-time to reset magnetic elements. This device contains many of the same elements of the UC3842 current mode controller family, combined with the enhancements of the UCC3802. This minimizes power supply parts count. Enhancements include leading edge blanking of the current sense signals, full cycle fault restart, CMOS output drivers, and outputs which remain low even when the supply voltage is removed.
**FEATURES**
•*Single Oscillator Synchronizes Two PWMs**
•*150-µA Startup Supply Current**
•*2-mA Operating Supply Current**
•*Operation to 1 MHz**
•*Internal Soft-Start**
•*Full-Cycle Fault Restart**
•*Internal Leading-Edge Blanking of the Current ****Sense Signal**
•*1-A Totem Pole Outputs**
•*75-ns Typical Response from Current Sense ****to Output**
•*1.5% Tolerance Voltage Reference**
